Description

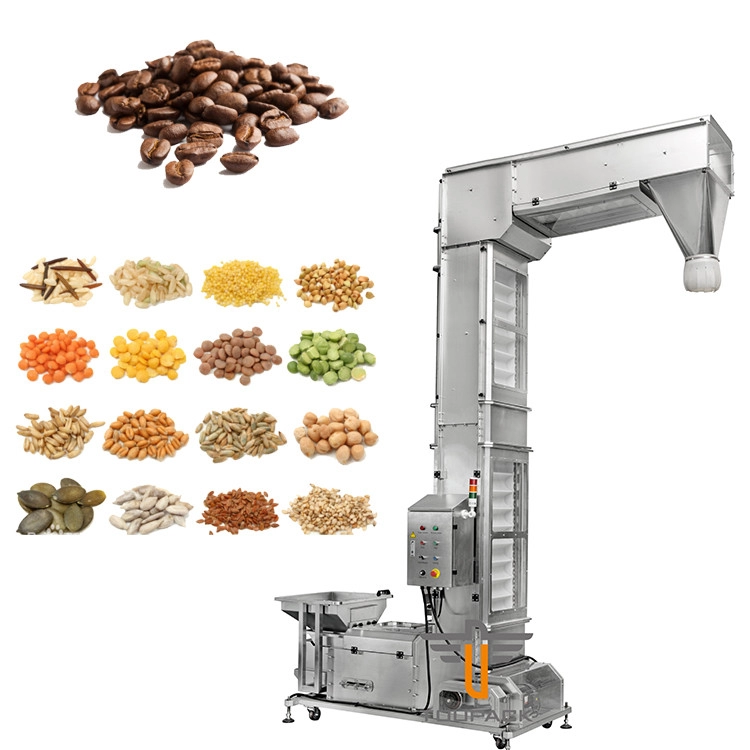

304SUS Maize Mill Coffee Bean Mobile Vertical Z Type Bucket Elevator Conveyor With Vibration Feeder
304SUS Bucket Elevator Conveyor Maize Mill Coffee Bean Mobile Vertical Z Type With Vibration Feeder 0
Z Type bucket elevator is the universally lifting conveying equipment. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device and so on.
Application
The equipment is widely used in where multi-point feeding and discharging is needed. Usually it works together with weighing & packaging machines and color selecting machines on automatic production line. It is mainly applicable products:puffed food, fodder ,candies , dried fruit , health food , grains , chemicals , hardware, etc.
Technical Parameters
Contents
Specifications
Body Material
carbon steel / SUS304
Hopper Volume
1.0L / 1.8L / 3.6L
Hopper Surface
dimple / plain
Power Supply
single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW
Conveying Capacity
2.5m³/h / 4m³/h / 8m³/h
Machine Dimension(mm)
per customer’s requirement
Vibrating Feeder
detached / independent vibrating feeder
Feeder Volume
70L / 100L / 150L / 200L
Discharge Funnel
single / double / multiple
Feature
5.Electromagnetic vibration feeder feed material is possible.
6.Multiple discharges can be pneumatically controlled.
7.Vertical lifting can save floor space, and power loss is small, because the accumulation of material in the bucket, has been in a relatively static state during transport, it is not caused by transport damage.
8.Conveying height up to 10 meters.
9.According to the requirements of users (different materials, delivery capacity, delivery height) for the design and production.
Specifications of 304SUS Bucket Elevator Conveyor Maize Mill Coffee Bean Mobile Vertical Z Type With Vibration Feeder
