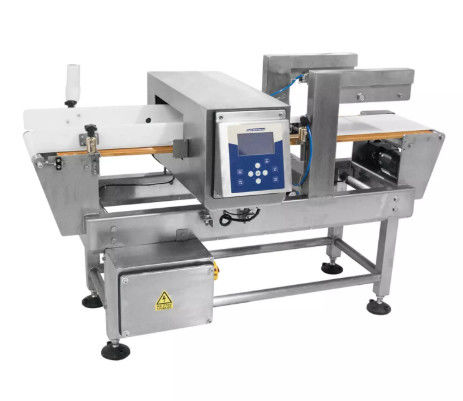

Metal Detector Machine Stainless Steel 304 Belt Conveyor checker High Accuracy

Features :

1.Detector is made by hard filling technology with better stability.

2.An intelligent learning function, automatically set parameters with simple operation.

3.Multiple filtering algorithm, X - R orthogonal decomposition algorithm, stronger anti-interference.

4.Phase intelligent tracking technology, better stability.

5.Anti-interference photoelectric isolation drive, remote installation operation panel.

6.Based on adaptable DDS and DSP technology , they can improve detection sensitivity and stability.

7.Store 100 kinds of product parameters by ferromagnetic random access memory.

8.Frame and roller made by 304 stainless steel , strong and durable.

9.Can detect all kinds of metal including Iron, Stainless Steel, Copper, Aluminum.

Techanical and Character :

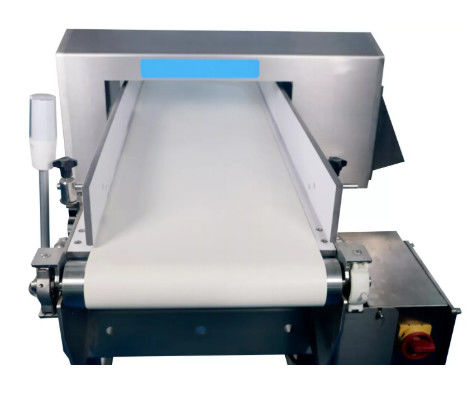

1.Special made conveyor belt can minimize the interference source,make machine running smoothly,and ensure the detection sensitivity,and it is more convenient to disassemble and maintain.

2.Stainless steel integrated frame,simple and beautiful,easy to clean and maintain.

3.The built-in high-sensitivity sensor of the detector can effectively shield the signal of the aluminum film packaging product and accurately determine the magnetic metal foreign matter in the package.

4.A variety of rejection are available.

Application:

Applicable for detecting metal in aquatic products, meat and poultry, pickled products, pasta, dried fruits, vegetables, industrial chemicals, pharmaceuticals, cosmetics and toys.

  Specifications:

Model

TYA-MD3011/

3015/3018/3021

TYA-MD4011/

4015/4018/4021

TYA-MD5018/

5023/5028

TYA-MD6028

Body Material SUS304

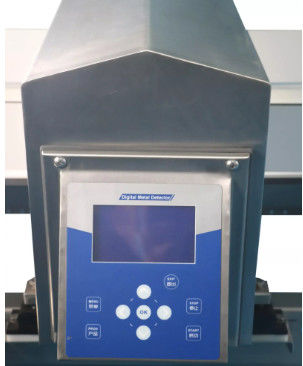

HMI 7” color touch screen

Detected Product Width ≤300mm ≤400mm ≤500mm ≤600mm

Detected Product Height ≤80~180mm ≤80~180mm ≤150~250mm ≤250mm

Detecting Sensitivity

(idle status)

Fe≥Φ0.5~0.8mm

SUS304≥Φ1.0~1.5mm

Fe≥Φ0.7~0.8mm

SUS304≥Φ1.2~1.5mm

Fe≥Φ0.7~1.2mm

SUS304≥Φ1.5~2.0mm

Fe≥Φ1.5mm

SUS304≥Φ2.0mm

Reject Device flash light alarm; pneumatic pusher / sliding (optional)
