Description
Long Biscuits Ice Pops Quantitative Weighing And Packaging Line Stand Up Pouch Doypack Packing Machine
Stand Up Pouch Doypack Packing Machine Long Biscuits Ice Pops Quantitative Weighing And Packaging Line 0

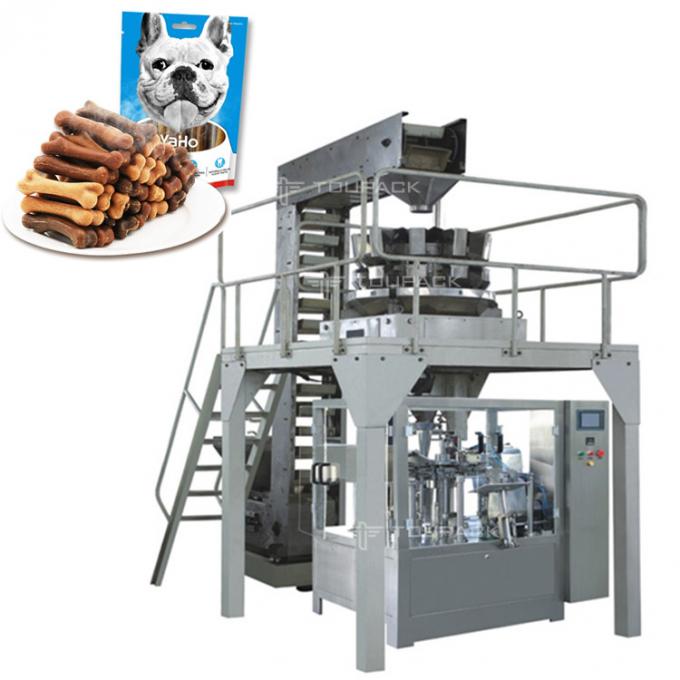

Machine Introduction:
The system is applicable for quantitative weighing and packaging of food products like long biscuits, ice pops, ham sausage, etc. and long stick-shaped products in chemical and hardware industry.
The unit included five parts:
Vertical packing machine
10/11/14/16 heads combination weigher
Z type material conveyor includes vibration feeder
Supporting platform
Product conveyor
Main Function & Features:
1. PLC control, touch screen, man-machine interface. Easy to operate. With errors indication system, helping handle the trouble immediately.
2. Adopt the combination weigher to weighing the material. High measurement precision, high speed. Easy to adjust the packing specification.
3. Adopt the servo motor to control the powder of pull film. Precise control of the length of the bag.
4. Servo motor for the sealing part, running smoothly, low noisy. Adjust the sealing pressure easily. Suitable for all kinds of packing material with different thickness.
Technical Parameter for Weigher:
Product name 16 head Multihead weigher
Volume AC 220V 50/60Hz
Max.weighing speed 50 bags/min
Drive way Step motor
Option
Dimple Plate/Timing Hopper/Diverter device/Printer/Rotary Top Cone
Weighing Capacit 1.6/2.5L
Specifications of Stand Up Pouch Doypack Packing Machine Long Biscuits Ice Pops Quantitative Weighing And Packaging Line
| Shipping From | China |
| Shipped by : | Wusell Express |
| Shipping Option : | Air Cargo , Sea Cargo , Sea Parcels |
