Description

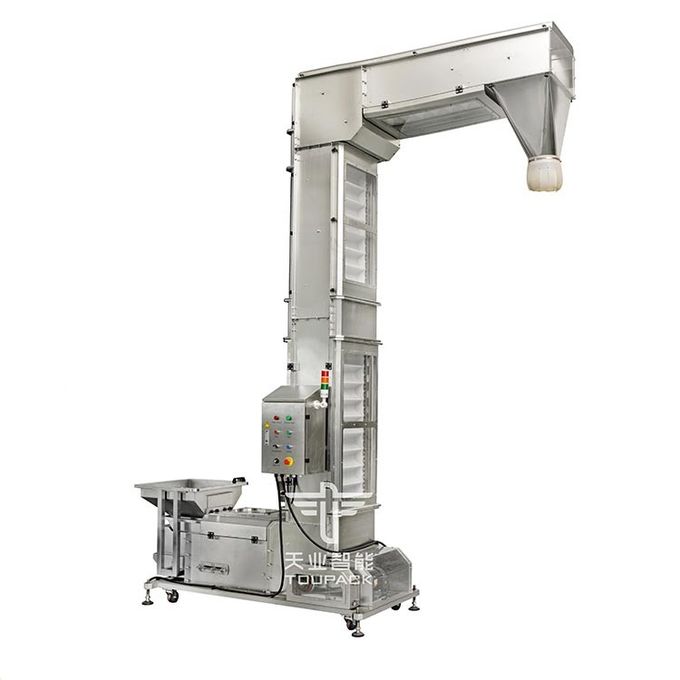

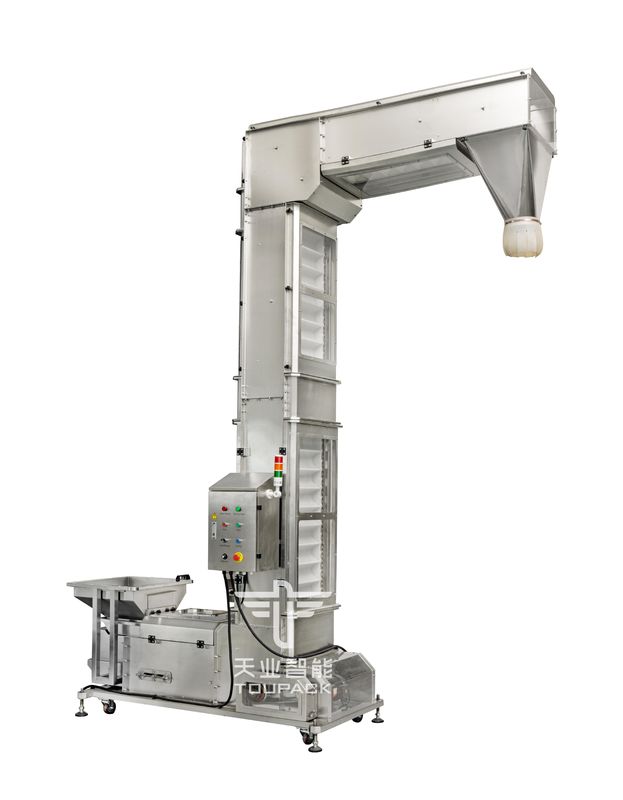

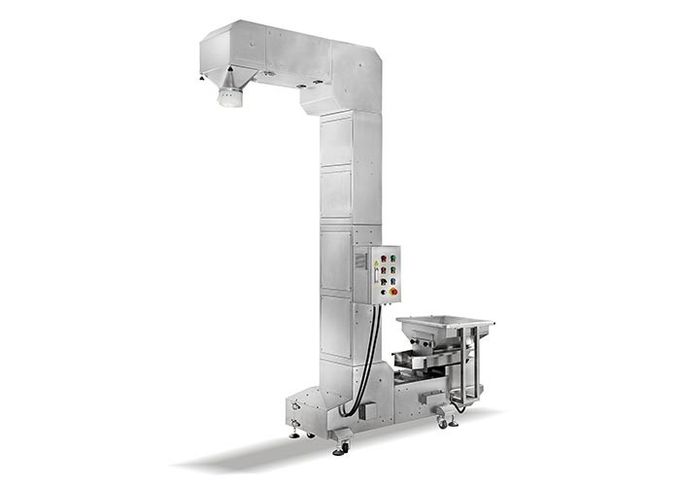

SUS3041.8L 3.6L 3.8 L Z Type Bucket Elevator Conveyor Customized Size
SUS 304 1.8L / 3.6L /3.8 L Z Type Bucket Elevator Stainless Steel Conveyor
Vertical Z Type Bucket Chain Elevator Application:
Applicable for lift-conveying of solid, granular, small-sized products
Vertical Z Type Bucket Chain Elevator Main Function & Features:
1. Able to perform in continuous or intermittent conveyance and support other feeding equipment.
2. Bucket made of food grade PP material and able to quickly remove from machine for cleaning.
3. Conveying speed is adjustable.
4. Two buckets option: 1.8L or 3.6L or 3.8L.

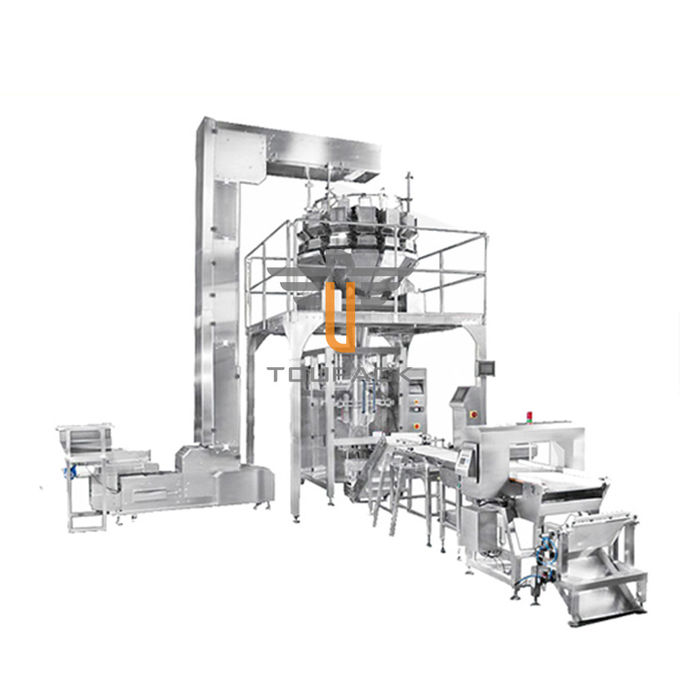

5. Able to connect with rotary packaging machine to achieve solid & liquid mixed product packaging.
Vertical Z Type Bucket Chain Elevator Technical Parameters:
Contents Specifications
Body Material SUS304 Food grade
Bucket Volume
1.8L / 3.6L / 3.8L
Bucket surface Dimple / Plain
Vibration feeder Independent vibrating feeder / detached
Feeder hopper 75L / 100L / 150L / 200L /280L
Discharging funnel Single / Double / Multiple
Power Supply single / 3 phase 220V/380V 50HZ/60HZ, 0.75KW
Conveying Capacity 2.5m³/h / 4m³/h / 8m³/h
Machine Dimension
1,450mm or per customer’s requirement
Specifications of SUS304 1.8L 3.6L 3.8L Z Type Bucket Elevator Conveyor Customized Size
| Shipping From | China |
| Shipped by : | Wusell Express |
| Shipping Option : | Air Cargo , Sea Cargo , Sea Parcels |
