Price Of High Quality Z Type Bucket Elevator For Powder Transportation Or Z-Shaped Bucket Conveyor For Beans

Z Shaped Bucket Elevator Conveyor For Beans Powder Transportation 0

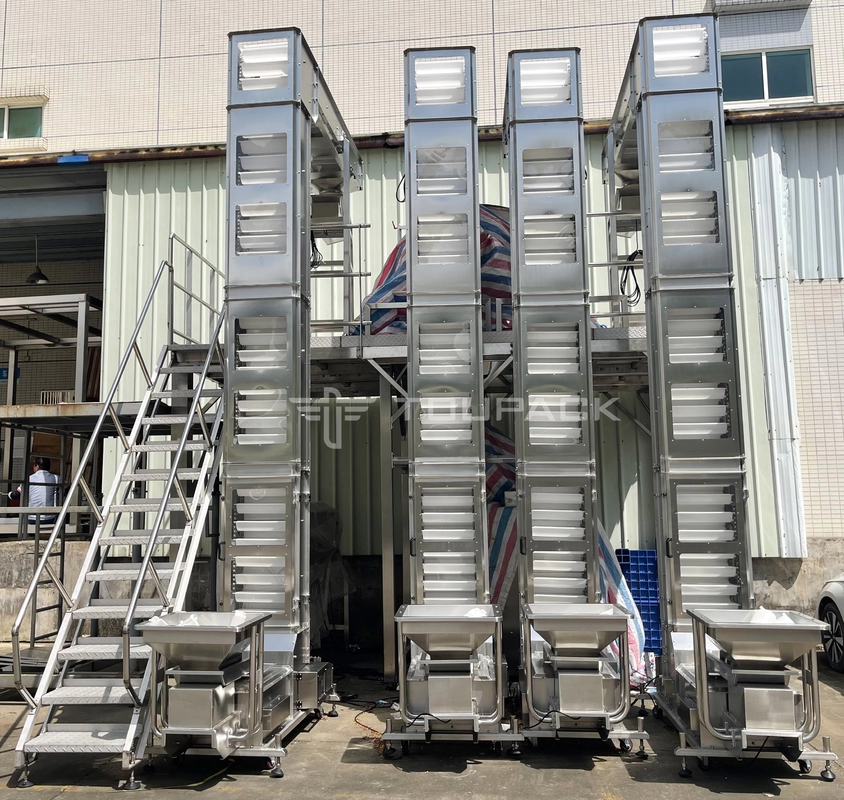

Z Type bucket elevator is the universally lifting conveying equipment. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device and so on.

 Application

The equipment is widely used in where multi-point feeding and discharging is needed. Usually it works together with weighing & packaging machines and color selecting machines on automatic production line. It is mainly applicable products:puffed food, fodder ,candies , dried fruit , health food , grains , chemicals , hardware, etc.

 Technical Parameters

Contents

Specifications

Body Material

carbon steel / SUS304

Hopper Volume

1.0L / 1.8L / 3.6L

Hopper Surface

dimple / plain

Power Supply

single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW

Conveying Capacity

2.5m³/h / 4m³/h / 8m³/h

Machine Dimension(mm)

per customer’s requirement

Vibrating Feeder

detached / independent vibrating feeder

Feeder Volume

70L / 100L / 150L / 200L

Discharge Funnel

single / double / multiple

Feature

1.The elevator and electronic metering scale shall be used together,control circuit is used to control the position of the material,realizing automatic feeding and stopping function.

2.The elevator is made of stainless steel.

3.The bucket can use ABS or stainless steel materials.

4.The bucket elevators allow for controlled discharge at one or more locations and can easily interface with various types of feeding devices.

5.Electromagnetic vibration feeder feed material is possible.

6.Multiple discharges can be pneumatically controlled.

7.Vertical lifting can save floor space, and power loss is small, because the accumulation of material in the bucket, has been in a relatively static state during transport, it is not caused by transport damage.

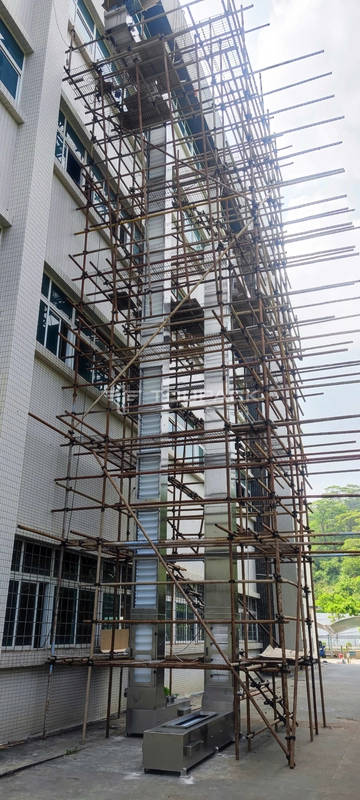

8.Conveying height up to 10 meters.

9.According to the requirements of users (different materials, delivery capacity, delivery height) for the design and production.
