Description

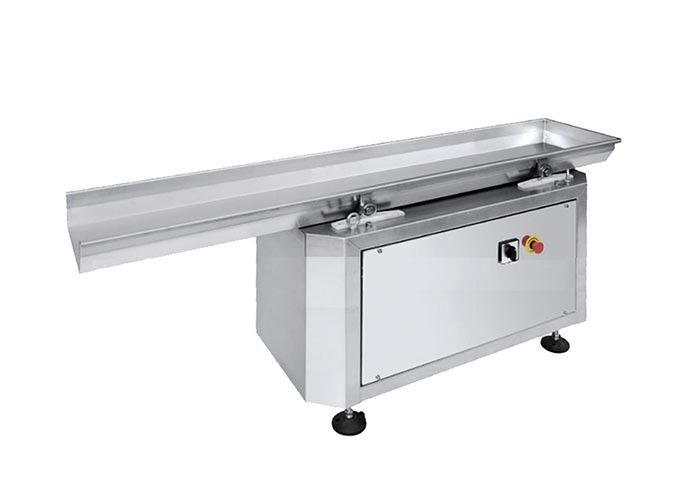

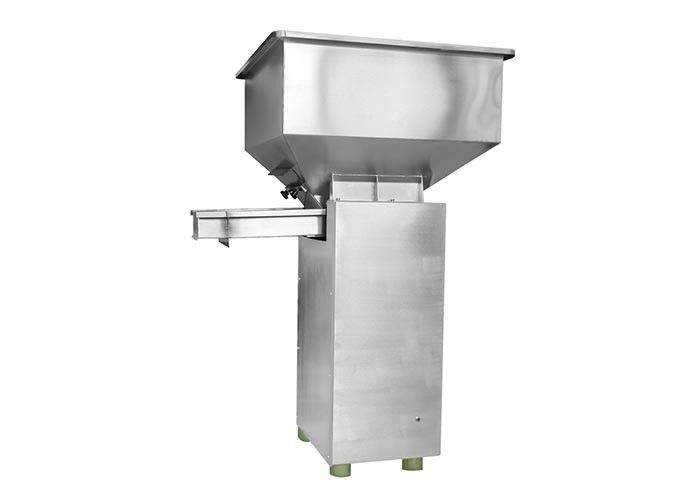

Stainless Steel Vibrating Feeder For Food Conveyor, Fast Rewinding Feeder
Application:
Mainly applicable in temporary storage and transportation to conveying equipment for granular products such as puffed food, grain, plastic pellets, dried fruit, etc.
Main Function & Features:
1. The machine uses electromagnetic principle as the power to vibrate the product to the conveying equipment to realize automatic feeding process.
2. To form a continuous or intermittent automatic weighing and packaging line with other equipment.
3. Simple maintenance, easy disassembly and convenient cleaning.
Technical Parameters:
Contents Specifications
Machine Independent vibrating feeder Fast rewinding feeder
Body Material SUS304
Frame Material carbon steel with powder coating
Vibrating Pan Length 826mm 2,667mm
Exit Height 530mm / 550mm or per requirement
Silo Volume 150L/200L N/A
Max. Capacity 8m³/h 8m³/h
Power Supply single phase 220V 50HZ/60HZ
Power Consumption 0.75KW 1.5KW
Total Height (mm) custom-made per requirement
Specifications of Stainless Steel Vibrating Feeder Food Packaging Auxiliary Equipment
