Description

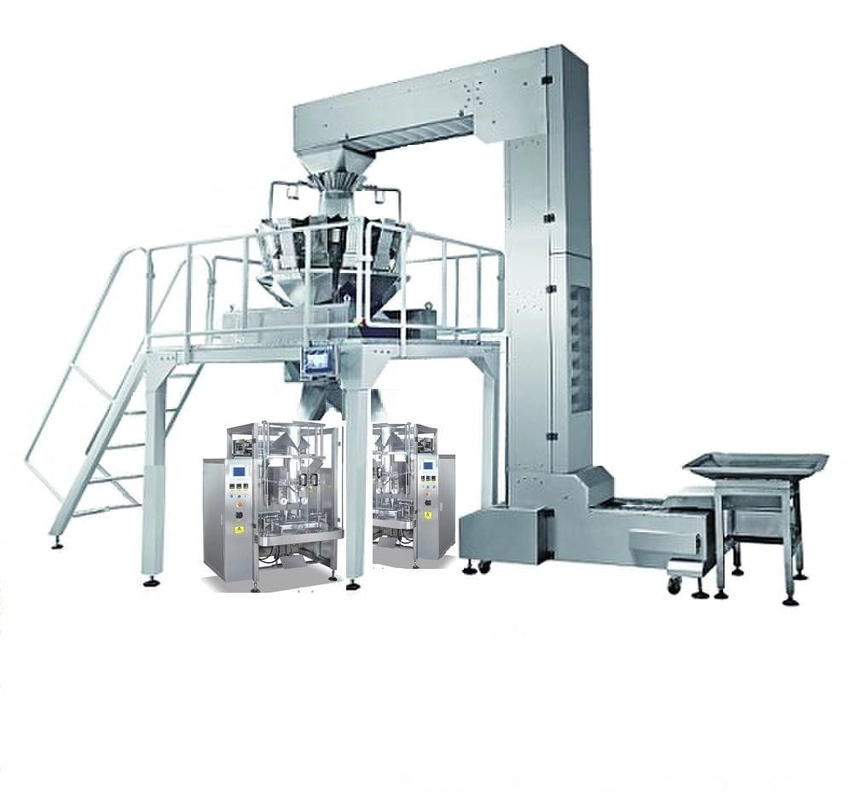

Weigher and packing machine for snacks /frozen food
Features:
Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
Use famous brand electric and pneumatic components, stable and long life circle.
Use superior mechanical components, reduce the wear out loss.
Easy to install film, auto correcting the excursion of the film.
Apply advanced operating system, easy to use and reprogrammable. To be used on Jintian High quality machine, it makes your packing work easily and efficiently.
Specification:
TY-420 Vertical packing machine
Bag length 50-300mm(L)
Bag width 50-200mm(W)
Max width of roll film 420mm
Packing speed 10-60bags/min
Air consumption 0.65Mpa
Gas consumption 0.3m3/min
Voltage 220V/50Hz
Power 2.2KW
Dimension 1080mm(L)*1300mm(W)*1400mm(H)
Machine weight 600KG

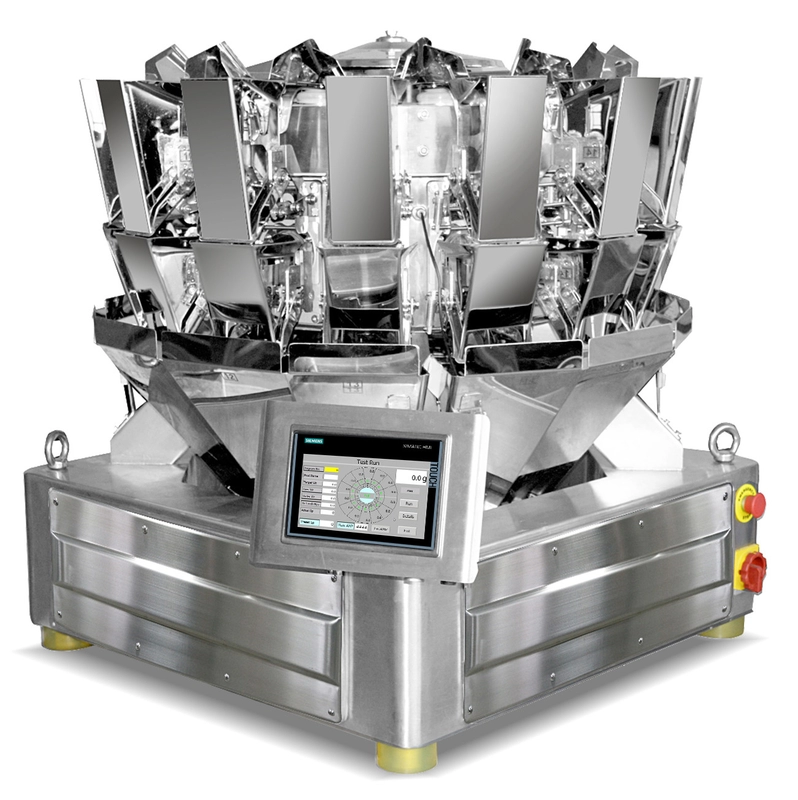

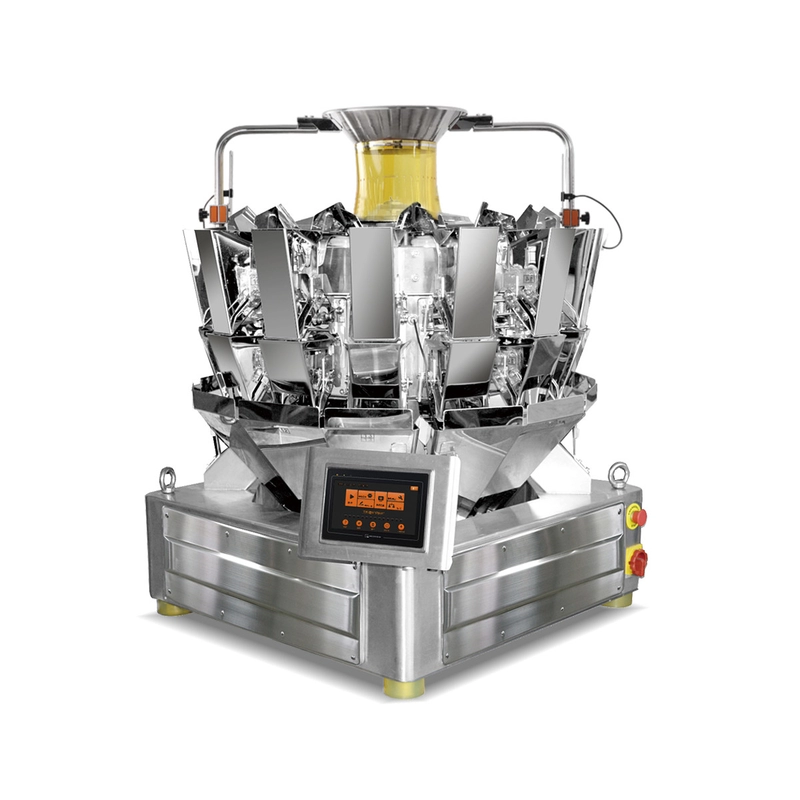

10 heads scale(weigher)
SUS304 Weigher Packing Machine For Snacks Frozen Food 0 Max. Cap.(g) 10-1000g
Weighing Accuracy(g) ±0.5-2g
Max. Weighing Speed 65PPM
Hopper Volume 1600ml
Control Panel 7 "LCD Touch Screen
Options Dimple Plate/Timing Hopper/Printer/Rotary Top Cone
Driving System Step Motor
Power Requirements 220V / 1000W / 50/60HZ / 10A
Packing Dimension(mm) 1620(L)x1100(W)x1100(H)
Gross WGT 420KG
Z-shape material elevator
Model Z-180
Convey speed 3750mm/min
Power 750W
Convey Measure 4T/H(Rice)
Overall size 3000(L)×650(W)×3750(H)mm
Platform for scale(weigher)
Model PL-1A Platform
Maximum Loading Weight 2T-3T
Equipment Size 2000mm*2000mm*2000mm
Net Weight 350kg
Finish product conveyor
Model FC-1A
Convey speed 30M/min
Belt Food grade polypropylene(PP)
Voltage Single-phase AC220V,50HZ
Power 40W
Packing size 1600mm(L)*520mm(W)*1000mm(H)
Specifications of SUS304 Weigher Packing Machine For Snacks Frozen Food
