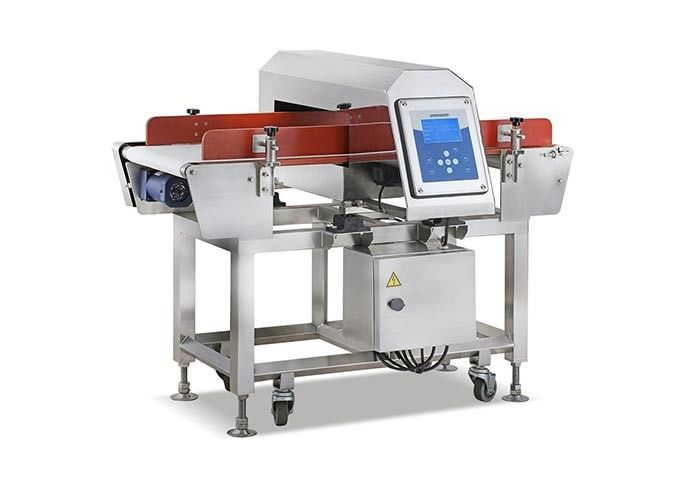

Food Meat Fish Seafood Production Line Conveyor Metal Detector Machine

The device can be used in food, pharmaceutical, chemical,textile and garment, toy industry and so on, which is authorized by HACCP(food industry), GMP(pharmaceutical industry), and it can be applied for cookies, sauces, dumpling, hum, soup, candy, meat, frozen food, salted food, fast food, bakery etc, and other industries that have special requirements on detection sensitivity, anti-interference, waterproof. Besides, it can detect broken needles, metals mixed with products.

Features:

1. Adopt the theory of balance, more reliable;

2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.

3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.

4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.

5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.

6. Have self- learning study function, can automatically digitally learn and store product's features.Easy to operate without manual participation to adjust technical parameters.

7. It can store more than 100 kinds of testing data of products.

8. Automatic flap rejection system can improve production efficiency and save labor costs.

  Specifications:

Model

TYA-MD3011/

3015/3018/3021

TYA-MD4011/

4015/4018/4021

TYA-MD5018/

5023/5028

TYA-MD6028

Body Material SUS304

HMI 7” color touch screen

Detected Product Width ≤300mm ≤400mm ≤500mm ≤600mm

Detected Product Height ≤80~180mm ≤80~180mm ≤150~250mm ≤250mm

Detecting Sensitivity

(idle status)

Fe≥Φ0.5~0.8mm

SUS304≥Φ1.0~1.5mm

Fe≥Φ0.7~0.8mm

SUS304≥Φ1.2~1.5mm

Fe≥Φ0.7~1.2mm

SUS304≥Φ1.5~2.0mm

Fe≥Φ1.5mm

SUS304≥Φ2.0mm

Reject Device flash light alarm; pneumatic pusher / sliding (optional)
