Description
High Accurancy Horizontal Weight Grader Sorting Convery Machine Multi Weight Sorting Checkweigher PLC Control Systrem

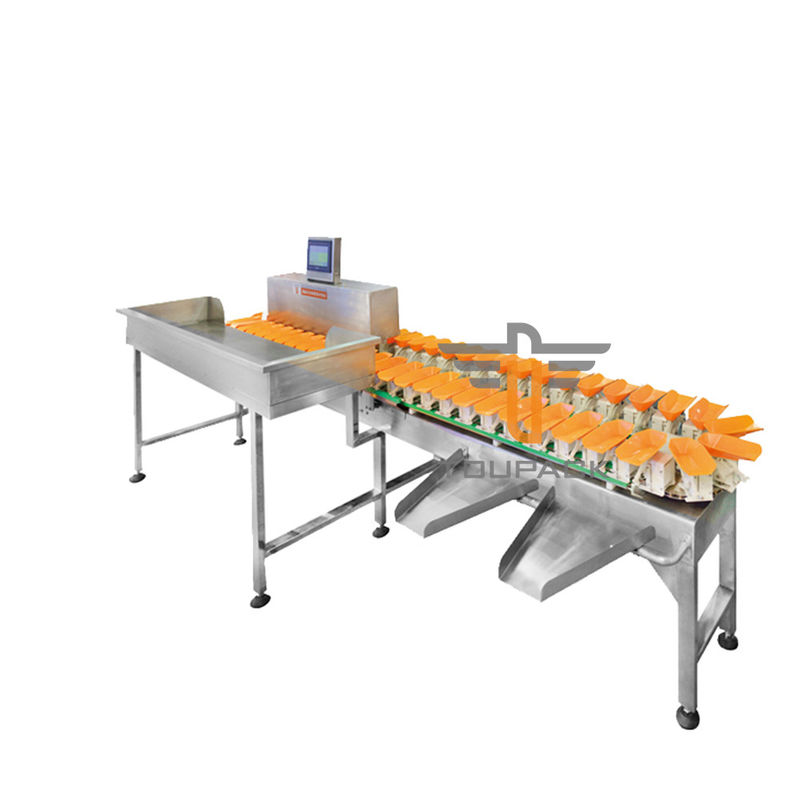

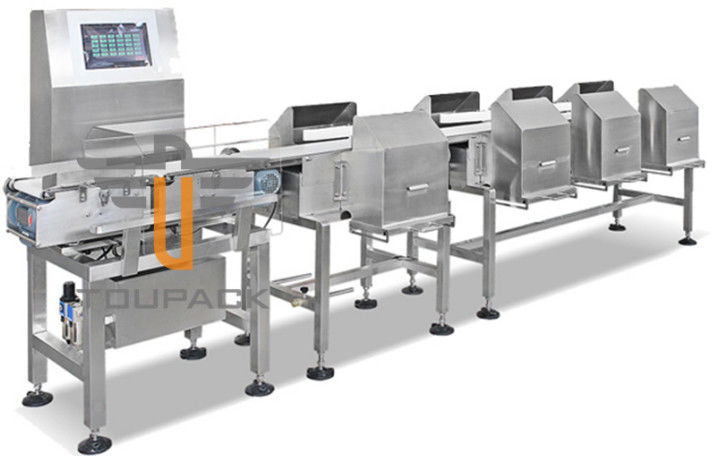

Horizontal Weight Grader Sorting Machine Application:
Applicable for multi-weight sorting of poultry, marine as well as agricultural products such as chicken legs/wings/meat.trepang,abalone,small fish,shrimp,Chinese medical herbs,fruits and many other products with the size within 12*18CM and the weight within 500g(1~14 grade sorting),regardless of their shape.
Multi-weight sorting checkweigher feature:
High accuracy
High weighing and grading speed
Robust and compact construction
User-friendly
Technical Specification:
Model TY-CW-YP4
Power Supply AC220V±10% 50HZ(60HZ)
Rated Power 0.6KW
Checking Range ≤500g
Accuracy ±0.3g~±3g
Minimum Scale 0.1g
Optimal Throughput 300 pcs/min
Suitable Product Dimension ≤120mm L*80mm W
Magazine size 173mm*91mm
Rejector Drop
Control Module High Speed A/D Sampling Module
Product Preset 99
Conveyor Direction Rotary
Operating Requirement Temperature: 0℃~40℃,Humidity:30%~95%
Machine Body Construction SUS304 Full Stainless Steel
Specifications of High Accurancy Horizontal Multi Weight Grader Convery Machine PLC Control System
