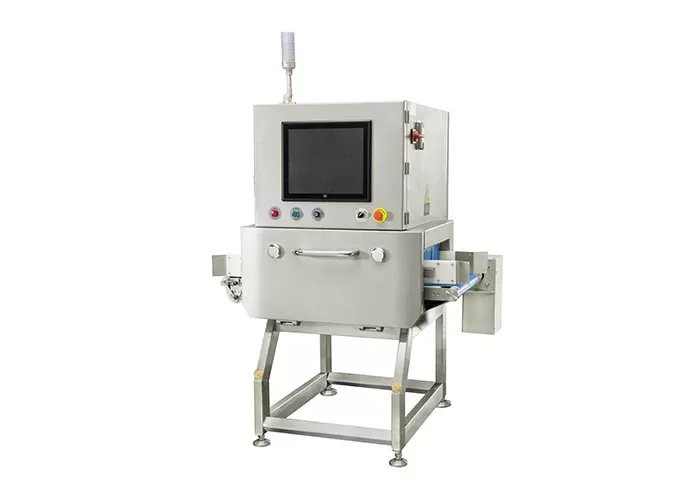

Food X Ray Inspection Systems Automatic X Ray Detector Food Safety High Accuracy
X Ray Inspection System Application:
It is used for detecting metallic and non-metallic material and defects in food, chemical, pharmaceutical industry. such as glass. ceramics, stones, bones, hard rubber and plastic.
X Ray Inspection System Features:
1. Up to 8 grades of image processing to achieve the best product adaptability and stability.
2. Able to shielding edge, desiccant, canned food and aluminum clamp for ham sausage.
3. X-ray leakage meets US FDA and European CE standards
4. Air conditioning and IP66.
5. Easy to dismantle and clean.
6. Optional rejection
X Ray Inspection System Configuration:
Frequency converter: Danfoss (Danmark)
X ray collector: Detection Technology(DT) (Finland)
Industrial air conditioning: Pfannenberg (Germany)
X ray: VJ GROUP (USA)
PLC: MITSUBISHI (Japen)
Limit switch: OMRON (Japen)
X Ray Inspection System Specifications:
Model TTX-2417K100 TTX-4017K100 TTX-5026K100 TTX-6035K100
X-ray Light Source 150W/100KV 210W/100KV 350W/100KV
Detecting Width 240mm 400mm 500mm 600mm
Detecting Height 170mm 170mm 260mm 350mm
Accuracy SUS ball Φ0.3mm, SUS wire Φ0.2*2mm
Transfer speed 10-70m/ min
HMI Germany 17 inch touch screen
Connectivity LAN Port, USB Port
Working environment Working temperature:-10℃~40℃(Cooling method:Air conditioned cooling),
Working humidity:30%~90%,No dewing (Humidity controlling: Anti-humidity device)
X-ray Leakage 1 millisievert / hour
Protection method Lead-free protective curtain(easy for disassembling)
Alarming method Acousto-optic alarming
Power Supply AC220V ± 10% 50Hz(60Hz) 1.5kVA Max
Body Material SUS304
Specifications of IP66 100KV Food X Ray Inspection Systems Automatic X Ray Detector
