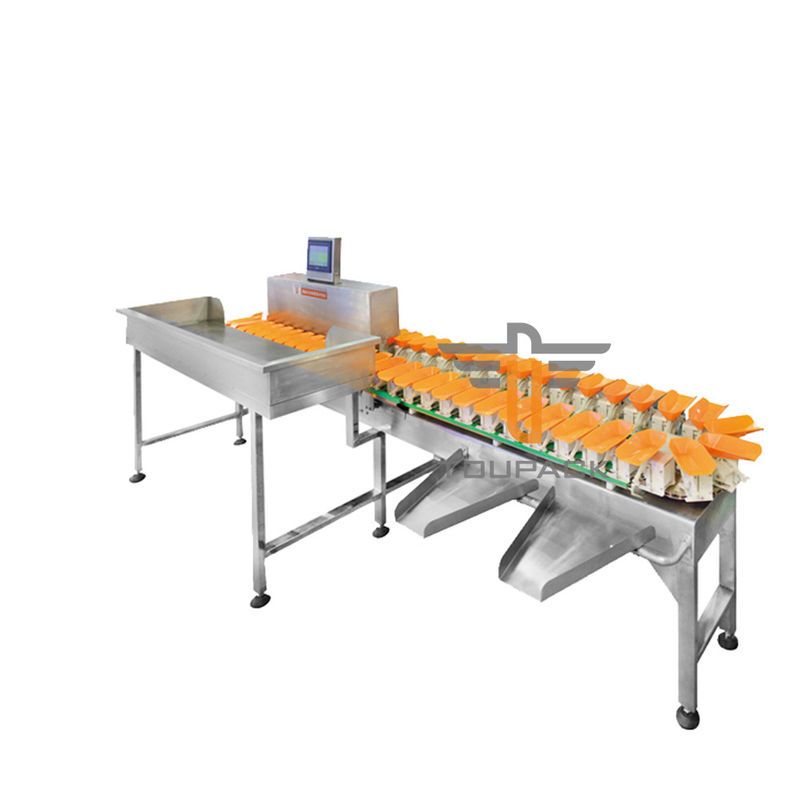

Food Grader Circular Multi Weight Sorting Machine With Conveyor Belt

Application:

This sorting machine is mainly used for apple, egg yolk ,pear, dragon fruit, orange, peach, kiwi fruit and guava, etc round shapes of fruit and vegetable sorting and grading. This machine is to sort the fruit by fruit weight.

Features:

1. Reasonable structure design, high sorting speed, low broken rate, small weighting error and high degree of accuracy. The weighting sorting performance has reached the international standard.

2. This sorting machine can be moveable. It can not only work in the fruit garden, but also in the town factory. Thus it can reduce the fruit broken caused by fruit carrying

Circular multi weight sorting machine functions:

1. High precision and digital weighing sensor system

2. High speed digital filter processing and automatic zero tracking function

3. Unique dynamic weighing anti jamming technology, high speed with high accuracy.

4. 99 kinds of product preset, free to switch

5. Rejecting/Sorting Type : pusher, Lever, Air Jet, slide available for choice

6. Humanized operating system, easy to learn and operate, a variety of language versions available

7. Data storage and output printing capabilities

8. Additory multiple protocol ports to be embeded in a variety of production/transportation lines and conveyor systems

Specification:

Max. Weighing 500g

Sorting accuracy +/-0.3g

Sorting speed 300 times/min

HMI 7' touch screen

Product size <180mm(L)x120mm(W)

Control system High speed AD controller

Pre-set prdoucts number 99

Power supply

AC220V+10% 50/60hz 0.6kw

Reject device overturned device

Working temperature 0-40 degree, humidity 30-95%

Grades number 0-14

Food Grader Circular Multi Weight Sorting Machine With Conveyor Belt

Remarks:

1. Weighing accuracy and speed depend on product's shape and other conditions

2. Customized size and weighing capacity are accepted

After-sale Service:

one year warranty, life-long maintenance. With engineers serving overseas available.
