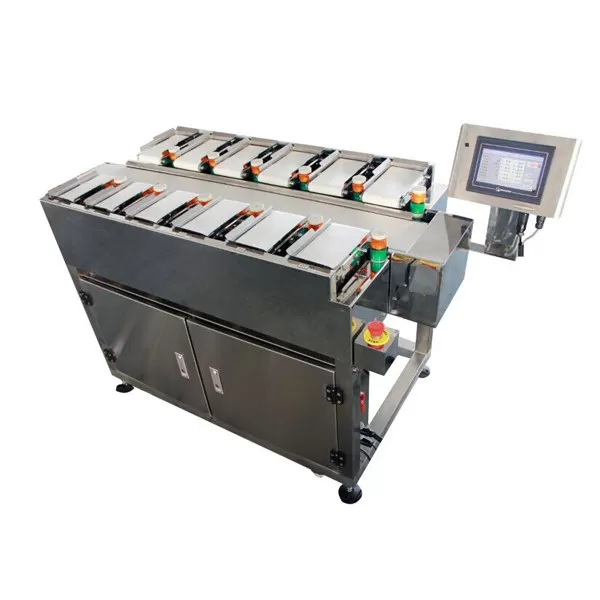

High Precision Belt Fresh 12 Combination Scale PLC Control System Waterproof

High Precision ​12 Combination Scale Application:

The main computer calculates the desired combination in a fraction of a second and activates the conveyor belt of the relevant actuator units. The targeted product amount is forwarded ready for packing. In the mean time, the processor is already calculating the next possible combination.

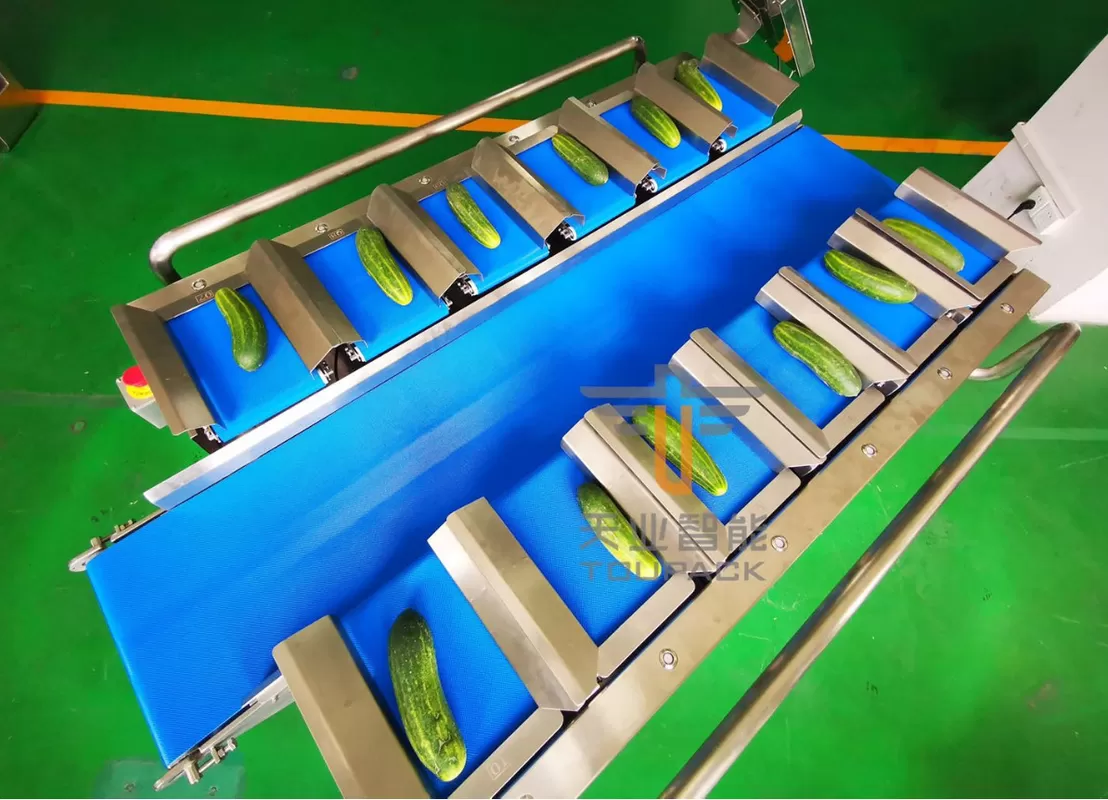

Applicable for weighing of irregular shaped products, such as vegetables like cucumber, chili, carrot, potato; Irregular fruits and irregular seafood like fish, frozen fish.

High Precision ​12 Combination Scale Features:

1. Professional digital weighing module with high precision and good stability

2. Control system: MCU or PLC (optional).

3. Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.

4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.

5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.

6. Weighing and counting function to meet diverse needs from customers.

7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.

8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.

9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.

10. Modular design of control system for easy maintenance and cost-saving.

Belt Fresh High Precision 12 Combination Scale Techanical Charater

1. Stainless steel 304 waterproof electric carbinet

2. 10' touch screen with stainless steel housing

3. SIEMENS PLC control system

4. Food grade belt

5. Stainless steel waterproof load cell
