Description

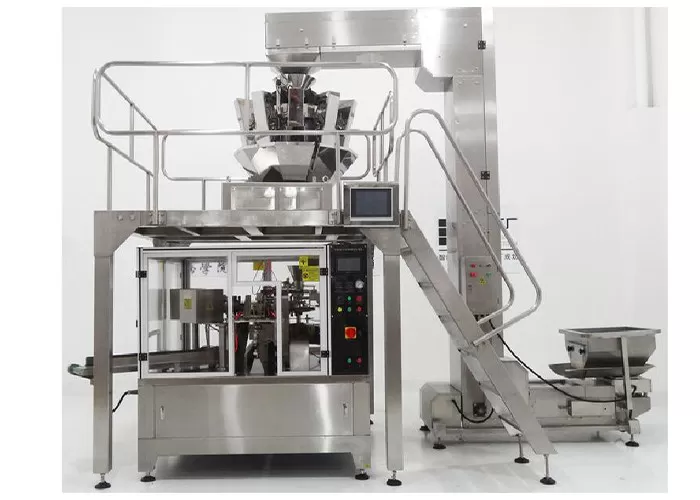

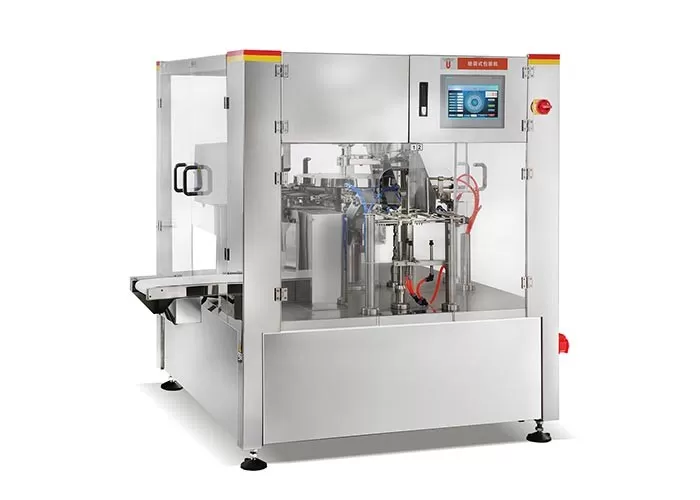

Rotary Doypack Packing Machine Nitrogen charging Zipper bag
Automatic doypack packing machine Features:
1. Tatol packaging automation, improved production efficiency and significantly reduced the product cost.
2. The machine can check the air pressure, temperature controller breakdown, opening status of the pouches to determine.It can also control the code printer, filling and hot-sealing device to avoid wasting of bags and products.
3. Meet a variety of packaging needs and cab be used with other equipment.
4. Filling system in intermittent operation and vacuum system in continuous operation.
5. Quick change of the pouches. The width of the bagging can be adjusted automatically at one time.
6. With product contact parts in SSUS304 or other material to conform with food hygiene and safety.
7. Convenient for cleaning. The vacuum chamber can be cleaned.
8. With pre-fabricated pouches, packaging material waste is low. Patterns on pouches are complete and good-looking and sealing is of good quality, enhancing the product level. When there is no product filling, there is no sealing and the pouches can be re-used.
9. Utilizing advanced PLC and POD electrical control system, the machine is able to adjust the angle and time of the pneumatic parts and human-machine interface is friendly with easy operation.
Rotary machine specifications:
Packaging Speed 30~50 bpm
Bag Size 100-160(L)*100-230(W)mm
Packaging Weight 1-1.5kg
Sealing Type reticulate pattern sealing; double zipper sealing
Powder Supply 3 phase 380V 50HZ, 3KW
Air Consumption 5-8kgf/cm²; 0.4m³/min
Bag Type flat bag, stand-up bag, zipper bag
Net Weight 1,600kg
Machine Dimension 1,550(L)*1,350(W)*1,400(H)mm
Specifications of 50bpm Rotary Doypack Packing Machine Nitrogen Charging Zipper Bag
| Shipping From | China |
| Shipped by : | Wusell Express |
| Shipping Option : | Air Cargo , Sea Cargo , Sea Parcels |
