The semi-automatic weighing net bag packaging system is a kind of equipment system for semi-automatic weighing and packaging. This type of system is usually used to load bulk materials (such as vegetables, fruits, granular or granular materials, etc.) into mesh bags and ensure that the weight of the product in each bag reaches a predetermined standard through a weighing system.

Weigh materials bananas, carrots, tomatoes

Target weight 500-5000g

Weighing speed 10~20 bags/min (depending on manual feeding and packaging speed)

Specifications:

Model LS-DCF-1/G-20

Ajustable operating temperature

0℃-40℃

Weighing accuracy

±2-3g

Weighing range

3g-5000g

Applicable power supply

800W/220V/50Hz

Pastes the sign precision

±3mm

Worktable height

680mm±50mm

Machine weight

128kg

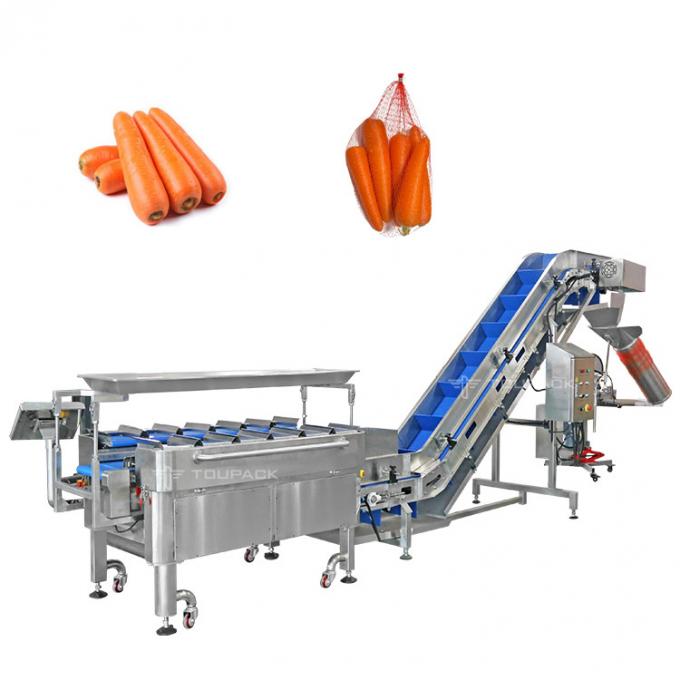

Solution: twelve head belt combined scale + Inclined Conveyor + semi-automatic net bag packing machine

12 head belt Multihead weigher

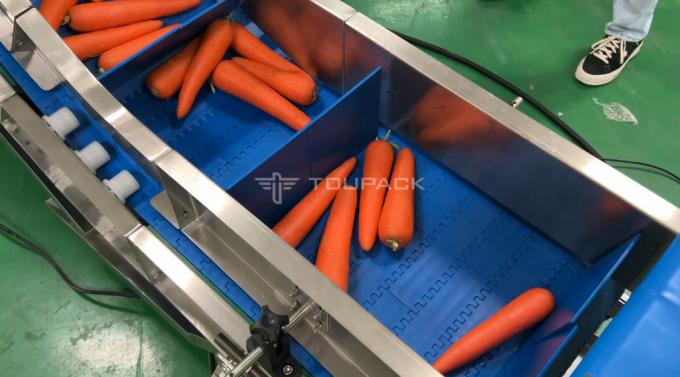

12 head belt Multihead weigher: The design of a flat belt scale with a partition is adopted, and the storage bin is configured on the scale for convenient and quick loading operation.

Semi Auto Carrot Weighing And Packaging Machine Vegetable Mesh Bag Packing Machine 1

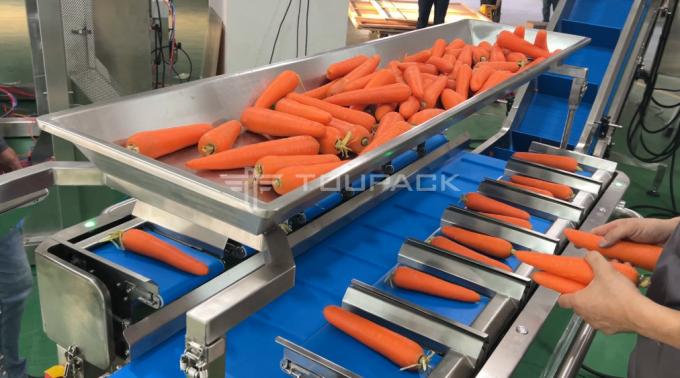

Inclined Conveyor

Inclined Conveyor : The guide hopper is set in the bottom horizontal section (near one end of the belt scale) to effectively prevent material from spilling; Equipped with sink, easy to collect residual materials; The material guide plate is added at the top discharge end to minimize the drop between the hoist and the net bag machine to ensure that the material is well protected.

Semi Auto Carrot Weighing And Packaging Machine Vegetable Mesh Bag Packing Machine 2

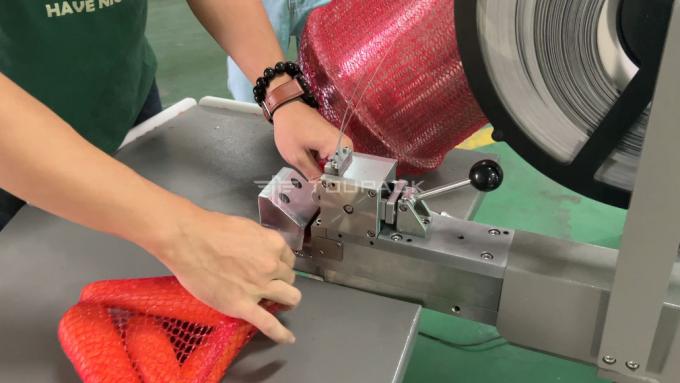

Semi-automatic net bag packaging machine

Semi-automatic net bag packaging machine: After the product in the net bag is filled, the machine is sealed to ensure that the product is safely sealed in the net bag. After the sealing is complete, the operator takes off the sealed mesh bag and prepares for the next round of packaging.
