High Accuracy Automatic Cankey Multi Lane Vitamin Stick Pack Protein Powder Check Weigher Multi Lane Check Weigher

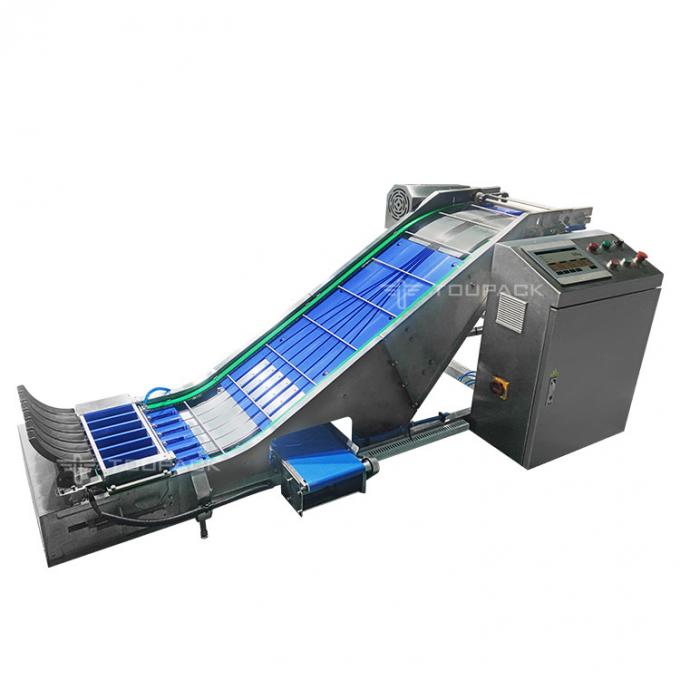

High Accuracy Multi Lane Check Weigher Automatic Cankey Vitamin Stick Pack Protein Powder Check Weigher 0

 Application

Multi Lane Check Weigher is suitable for matching with multi-column packaging machine, with automatic cartoning and laminating production line to realize the full-automatic production system from quantitative packaging, re-checking, cartoning and laminating. The main functions of this machine include weight checking of individual products, elimination and collection of defective products, height lifting of products and organizing and arranging of products in multiple columns. Widely used in pharmaceutical, food, health products and other industries. Such as granule punch, instant coffee, etc.

 Product Characteristics

Strong versatility: for the current market for multi-column packaging machine products can be applied (according to the multi-column machine to match the detection channel);

Multi-functional: combining product re-checking, lifting, strong rows, and organizing in one, with a matching system;

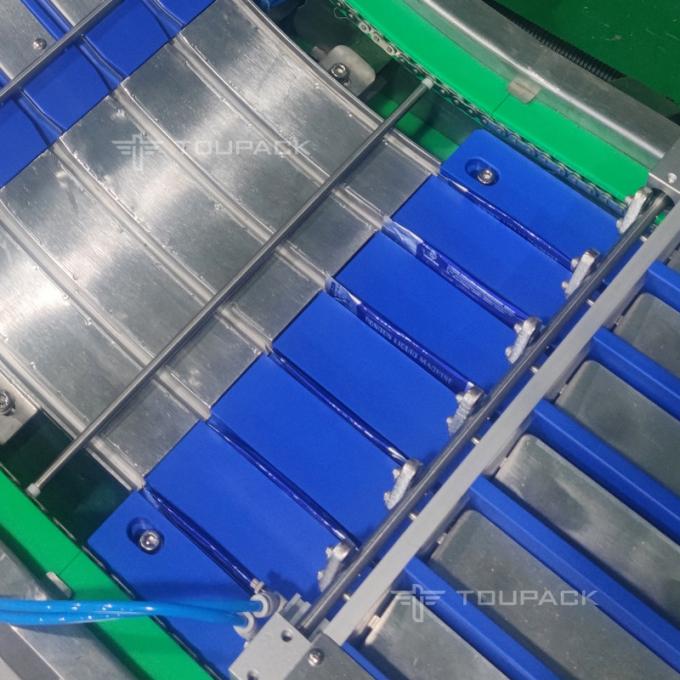

High Accuracy Multi Lane Check Weigher Automatic Cankey Vitamin Stick Pack Protein Powder Check Weigher 1

Easy to operate: using Willen color human-machine interface, parameter setting is fully intelligent. And equipped with physical buttons, easy to operate, humanized design;

Adjustable speed: the main drive is controlled by servo motor, the operation is precise and controllable. Aggregate conveying line adopts frequency conversion control motor, the speed can be adjusted according to needs.

High speed, high precision: adopts high precision digital sensor, fast sampling speed, high precision.

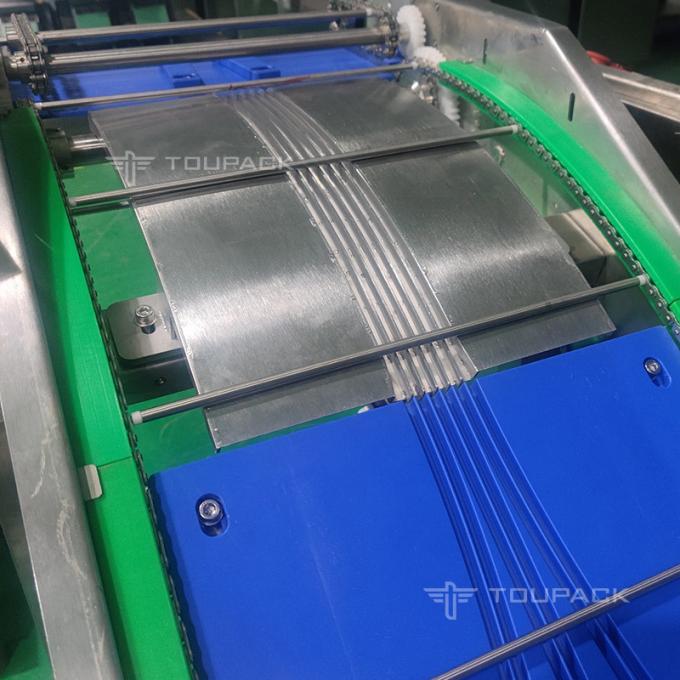

High Accuracy Multi Lane Check Weigher Automatic Cankey Vitamin Stick Pack Protein Powder Check Weigher 2

 Technical Parameters

Model

TY-JYH601P008-01-12

Power supply

AC220V±10% 50HZ(60HZ)

Rated power

0.75KW

Individual weighing range

≤30g

Weighing accuracy range

±0.05g

Minimum scale

0.01g

Conveying speed

50～55t/min

Maximum speed

330 pcs/min

Weighing material size

≤180mm(L)*40mm(W)*15(H)

Product Size

2300mm(L)*1050mm(W)*950mm(H)
