High speed, accuracy, stable operation 10bpm Granule Vertical Form Fill Seal Packaging Machine 620 mode Vertical Granule Packing Machine

620 mode Vertical Granule Packing Machine Main Function & Features:

1, Continuous weighing packaging design improves the weighing and packing speed.

2, Small target weighing selection of the best combination, a combination of high precision and high speed.

3, Greatly reduces the mechanical height and saves the space occupied by the equipment.

4, Servo motor transport membrane control, accurate positioning; automatic electric eye tracking.

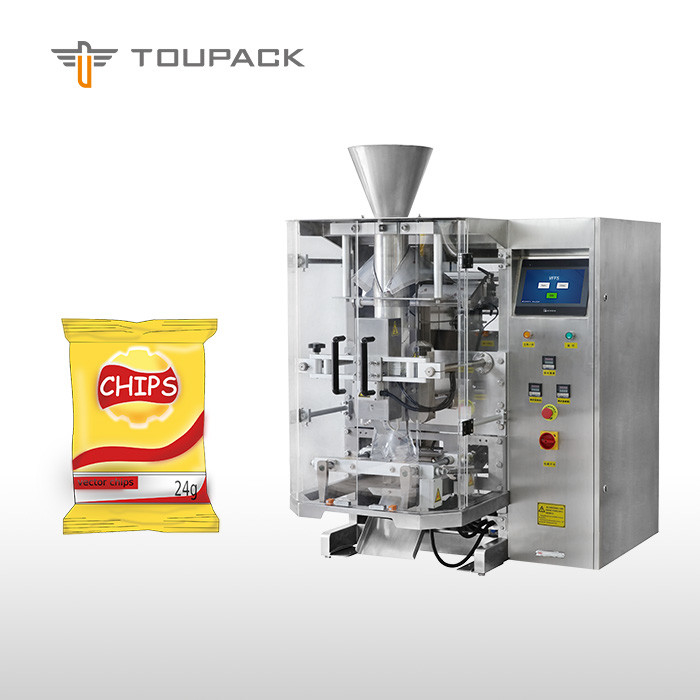

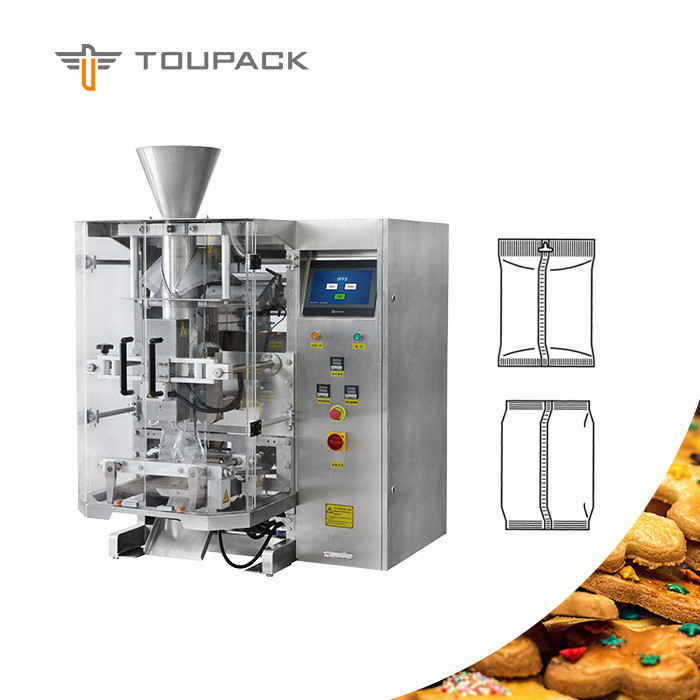

10bpm Vertical Form Fill Seal Packaging Machine For Granule 010bpm Vertical Form Fill Seal Packaging Machine For Granule 1

What can we pack?

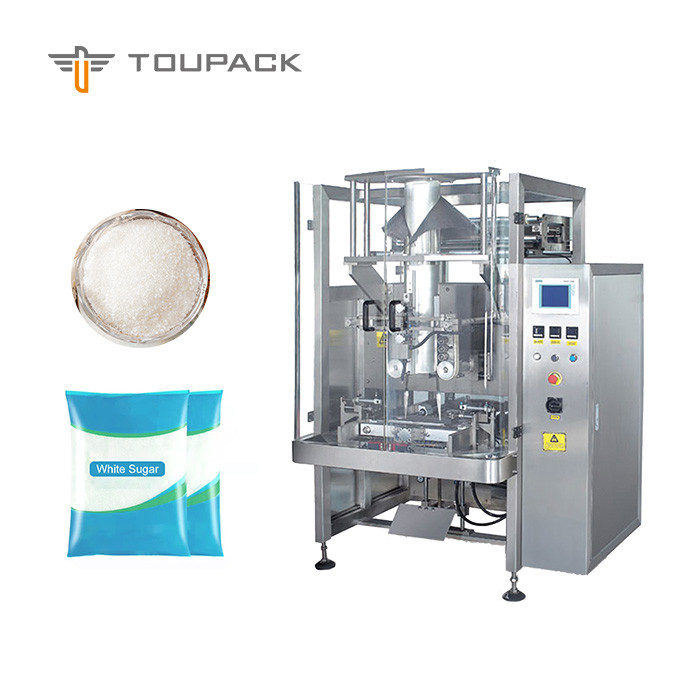

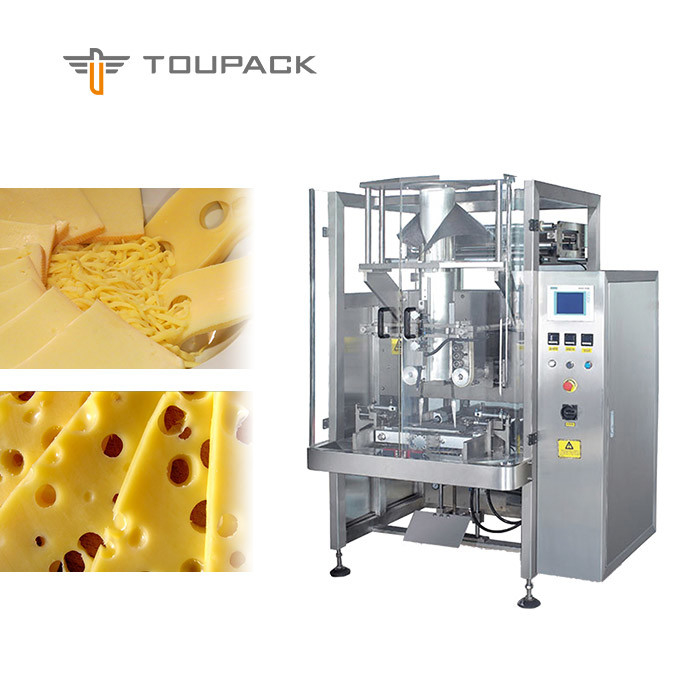

10bpm Vertical Form Fill Seal Packaging Machine For Granule 2

High speed, accuracy, stable operation Standard Features:

1. The machine can automatically complete the products conveying, measuring, feeding, filling and bag forming, date code printing, bag sealing, and cutting.

2. Servo-motor drove, twin belt film pulling system.

3. High sensitive fiber optic photo sensor can automatically trace color marks accurately.

4. PLC control system combined with a touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.

5. PID temperature controller monitors heat sealing temperature within +I- 1º C.

6. Selected electrical and pneumatic components from reliable international manufacturers.

7. With CE Certificate comply with CE standard

10bpm Granule Vertical Form Fill Seal Packaging Machine 620 Optional Parts:

1. Date code printer

2. Gusset pouch forming device

3. Hole puncher

10bpm Granule Vertical Form Fill Seal Packaging Machine 620 Optional Measuring Filler:

1) Volumetric cup Filler for Granule(sugar, salt, coffee, sesame, condiment, etc. )

2) Electrical Weigher for Granule (pet food, candy, chocolate, biscuit, preserved fruit, melon seeds, chips, peanut, etc. )

2) Auger Screw filler for powder (Coffee powder, milk powder, sugar powder, solid beverage, spice, etc. )

3) Rotary Gear Pump for Liquid and paste (sauce, ketchup, mustard, mayonnaise, etc. )

4) Piston Pump for Liquid (water, juice, cream, shampoo, conditioner, ketchup, etc. )
