Description

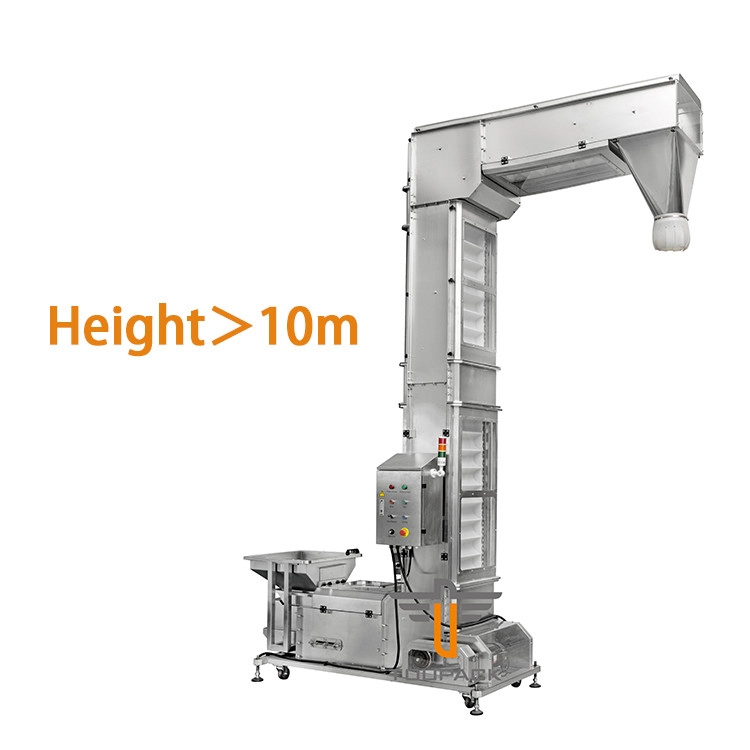

Customization Height 10m Stainless Steel Z Shape Bucket Elevator For Food Snacks Chemical Powder
Stainless Steel Z Shape Bucket Elevator Height 10m For Food Snacks Chemical Powder 0
Z Type bucket elevator is the universally lifting conveying equipment. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device and so on.
Application

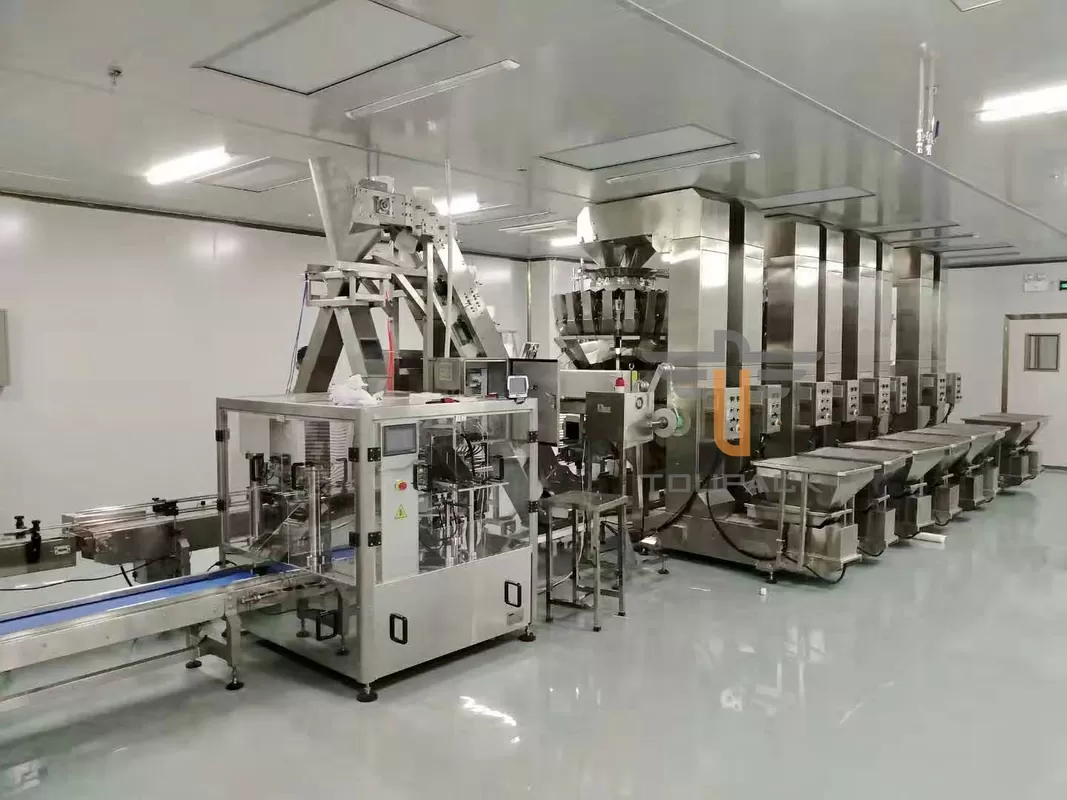

The equipment is widely used in where multi-point feeding and discharging is needed. Usually it works together with weighing & packaging machines and color selecting machines on automatic production line. It is mainly applicable products:puffed food, fodder ,candies , dried fruit , health food , grains , chemicals , hardware, etc.
Technical Parameters
Contents
Specifications
Body Material
carbon steel / SUS304
Hopper Volume
1.0L / 1.8L / 3.6L
Hopper Surface
dimple / plain
Power Supply
single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW
Conveying Capacity
2.5m³/h / 4m³/h / 8m³/h
Machine Dimension(mm)
per customer’s requirement
Vibrating Feeder
detached / independent vibrating feeder
Feeder Volume
70L / 100L / 150L / 200L
Discharge Funnel
single / double / multiple
Feature
1.The elevator and electronic metering scale shall be used together,control circuit is used to control the position of the material,realizing automatic feeding and stopping function.
2.The elevator is made of stainless steel.
3.The bucket can use ABS or stainless steel materials.
4.The bucket elevators allow for controlled discharge at one or more locations and can easily interface with various types of feeding devices.
Specifications of Stainless Steel Z Shape Bucket Elevator Height 10m For Food Snacks Chemical Powder
