Full-Automatic Fermented Soya Beans Granule Weighing Filling Machine Prevent Sticky 14 Head Multihead Weigher

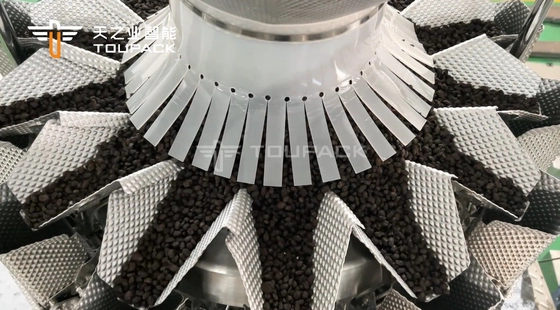

Full-Automatic Fermented Soya Beans granule Weighing Filling Machine Prevent Sticky 14 Head Multihead Weigher 0

Application sample:Puffed food, roasted nuts & seeds, potato chips, candy, sweet dumplings, biscuits, pasta, herbal pieces, pet food, frozen food, hardware ect

 Specifications

Model

TY-ZHY142M(P)16-01-11

Max. Weighing (one hopper)

10-1500g

Accuracy

x (0.5)

Max. Scale Interval

0.1g

Max. Speed

110 BPM

Hopper Volume

1.6L

Control System

MCU / PLC

HMI

7’’ / 10’’ color touch screen

Power Supply

220V 1.5KW 50/60Hz

Packing Dimension

1140mm(L)*1100mm(W)*1857mm(H)

 Main Function & Features

1. Professional digital weighing module with high precision and good stability

2. Control system: MCU or PLC (optional).

3. Touch screen interface with different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.

4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.

5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.

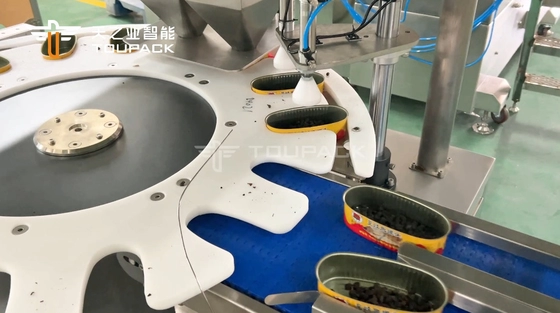

Full-Automatic Fermented Soya Beans granule Weighing Filling Machine Prevent Sticky 14 Head Multihead Weigher 1

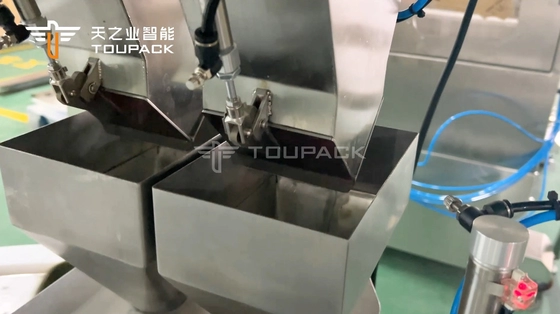

Full-Automatic Fermented Soya Beans granule Weighing Filling Machine Prevent Sticky 14 Head Multihead Weigher 2

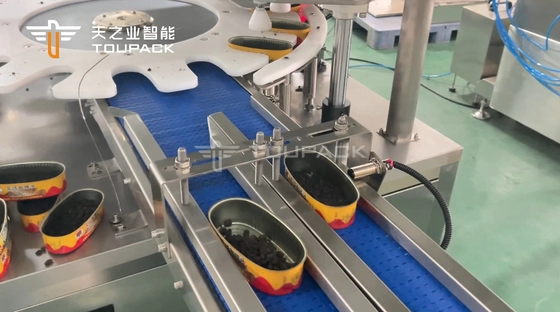

Full-Automatic Fermented Soya Beans granule Weighing Filling Machine Prevent Sticky 14 Head Multihead Weigher 3

6. Weighing and counting function to meet diverse needs from customers.

7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.

8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.

9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.

10. Modular design of control system for easy maintenance and cost-saving.
