Automatic Size Sorting Machine For Mango Fruit Grading Machine Vegetables Sorting Machine

 Automatic Size Sorting Machine For Mango Application

Applicable for multi-weight sorting of poultry, marine as well as agricultural products,such as chicken legs / wings / meat, trepang, abalone, small fish, shrimp, Chinese medical herbs, fruits and many other products with the size within 12*18CM and the weight within 500g(1~14 grade sorting), regardless of their shape.

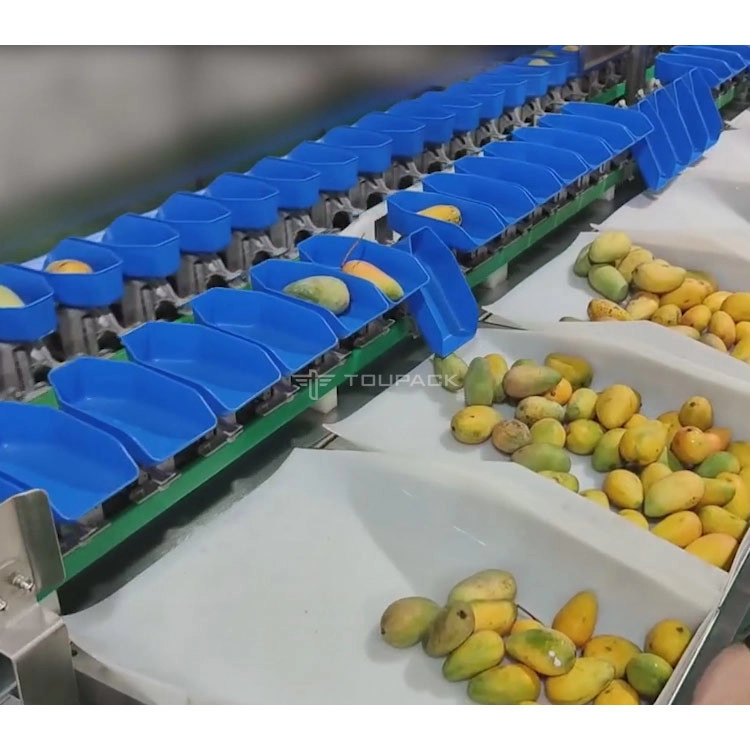

Stainless Steel 304 Automatic Size Sorting Machine For Mango Fruit Vegetables Grading 0

Automatic Size Sorting Machine For Mango Specifications

Model

TY-JYH104P115-01-11

Max.Weighing

500g

Sorting Accuracy

±0.3g

Sorting Speed

300 BPM

HMI

7” color touch screen

Product Size

≤1800mm(L)*120mm(W)

Control System

High-speed A/D controller

Pre-set Prod,No.

99

Power Supply

AC220V±10% 50Hz/60Hz,0.6KW

Machine Dimension

3592mm(L)*1174mm(W)*1508mm(H)

Reject Device

Overturned device

Working Condition

Temperature: 0℃~40℃;Humidity:30%~95%

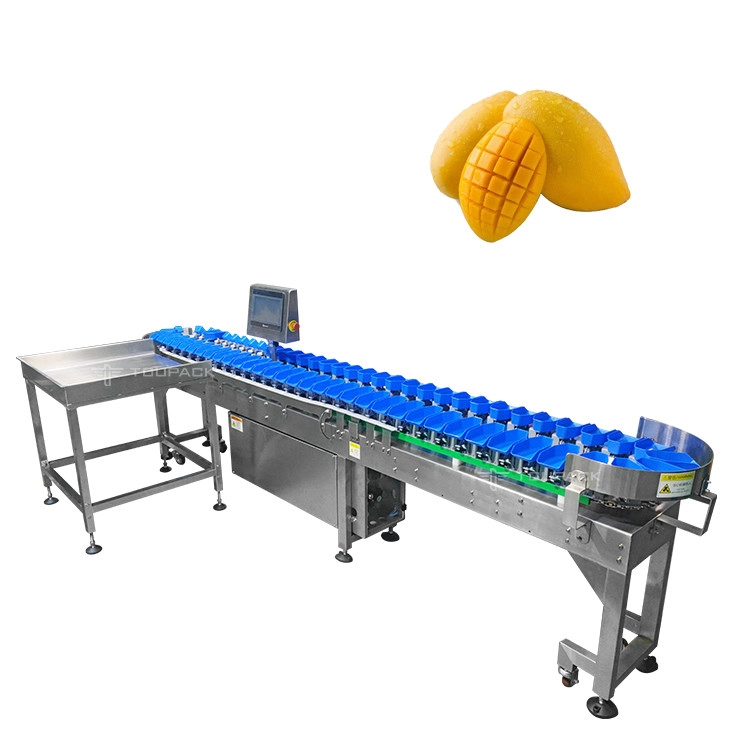

Stainless Steel 304 Automatic Size Sorting Machine For Mango Fruit Vegetables Grading 1

Stainless Steel 304 Automatic Size Sorting Machine For Mango Fruit Vegetables Grading 2

 Main Function & Festures

Versatility: Standard machine structure and HMI program design can accomplish weight sorting with wide range of products.

Easy to Switch:Able to store multi formula to switch to different product specifications.

Easy Panel Operation: 7" color touch screen with smartand humanized design.

Easy Maintenance:Conveying belts is removable for easy maintenance and cleaning.

Highly Efficient and Economic:Multi-sorting and automatic weight checking for labor cost saving and efficiency improving.

Augmentation:More equipment can be added to the machine at customer's demand.

Speed Adjusting:Frequency conversion control motor to adjust the speed as required.
