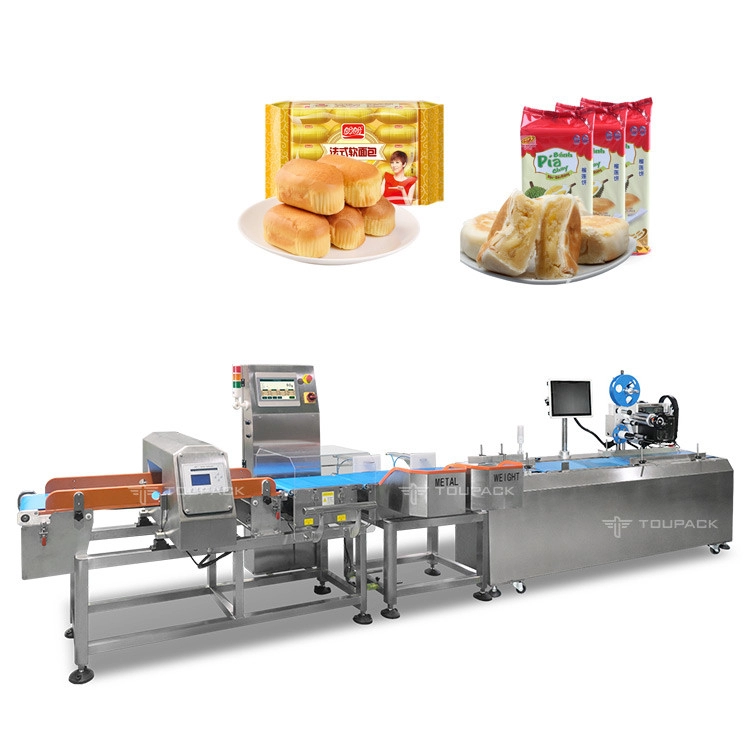

Toupack Commodity Production Electronic Check Weigher And Metal Detector Combination

SS304 Electronic Check Weigher And Metal Detector Combination For Commodity Production 0

 Introduction

The Dynamic Checkweighing System is a method of safe guarding within the food and packaging industries for product weights. The automatic checkweighers are widely used for checking the weight of filled pack in motion, rejecting any products that are over or under the set weight. Thus helps the manufacturer to keep the track of production line, eliminate the complaints from the market and protect the brand reputation.

TOUPACK is having the wide range of checkweigher systems. The maximum weighing capacity ranging from 1g to 100Kg for packs such as small hardware or tea bag to shipper cartons. Our engineering team can customized the weighing machine depend on the product weight, pack size and the production capacity. Besides, Juzheng's checkweighers can be used with metal detectors and X-ray inspection machines to enable other attributes of the pack to be checked and acted upon accordingly.

SS304 Electronic Check Weigher And Metal Detector Combination For Commodity Production 1

 Technical Specification

Power Supply

AC220V±10% 50HZ(60HZ

)

Rated Power 0.5kW

Effective detection width ≤300mm

Effective detection height ≤150mm

Metal Detection Precision Fe≥Φ0.5~0.8mm；SUS304≥Φ1.5~1.5mm

Single weighing range ≤5000g

Minimum scale ±0.5g~±2g

Conveyor speed 0.1g

Maximum speed 20~50m/min

Size of material to be weighed 80 pcs/min

Conveyor Belt Size ≤300mm(L)*290mm(W)

Product size 446mm(L)*300mm(W)

SS304 Electronic Check Weigher And Metal Detector Combination For Commodity Production 2

 Product Feature

High speed and high precision

Adopting high sensitive metal detecting probe and high precision digital sensor, fast sampling speed and high precision.

Push

Accurate and effective rejection of non-conforming product.

Precise and efficient categorize and reject

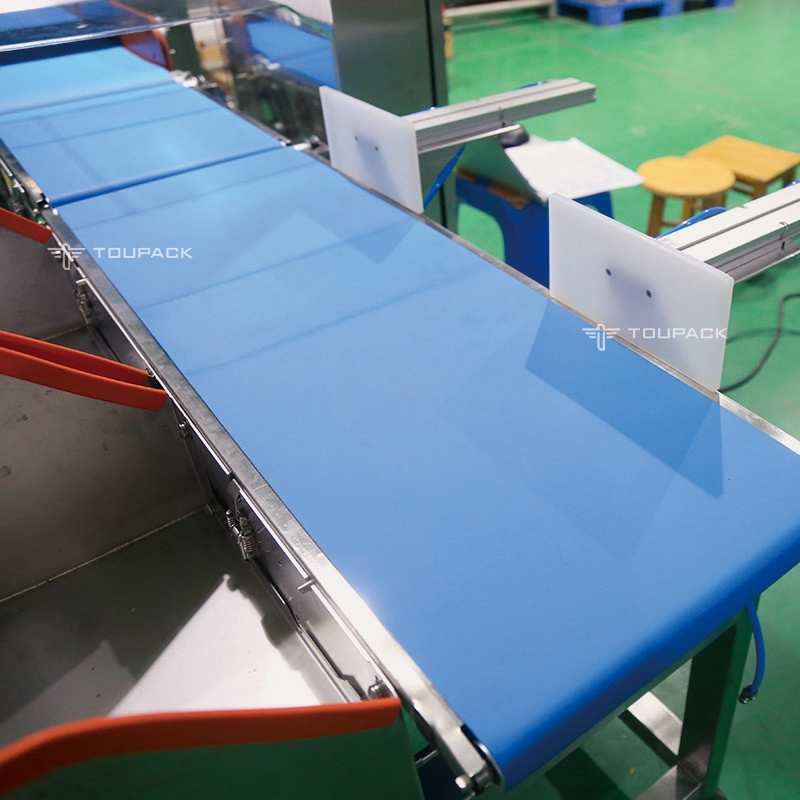

Dual rejection channels, according to the detection of abnormal signals, rapid response, reject the substandard products to the corresponding collection box, to facilitate the classification and recycling.

SS304 Electronic Check Weigher And Metal Detector Combination For Commodity Production 3

High versatility

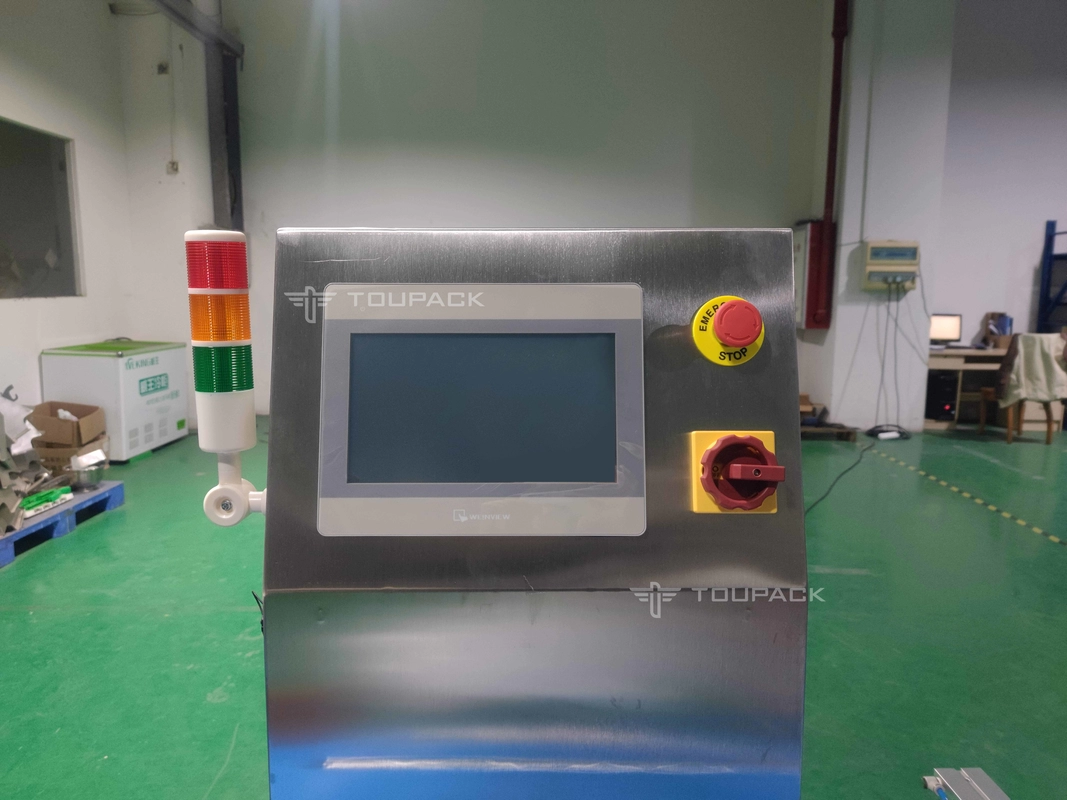

The standardized structure of the whole machine and the standardized man-machine interface car complete the detection of metal foreign matter and weighing measurement of various materials.

Full range of testing

360° inspection with a belt speed of up to 50 meters per minute inspection range.

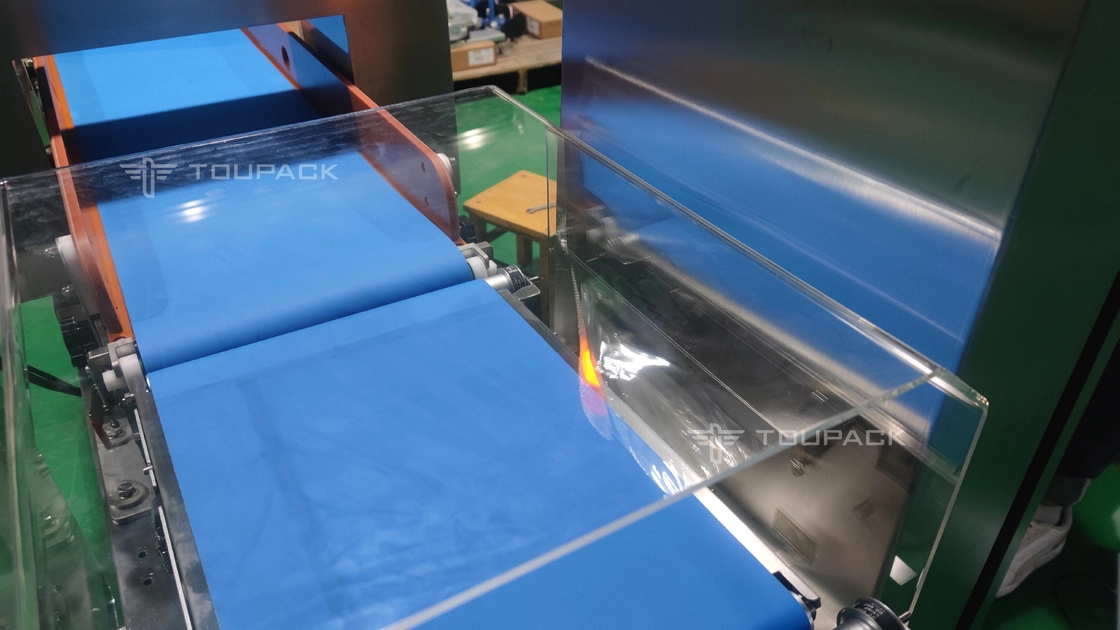

Food Grade Conveyor Belt

Protecting consumer food safety.
