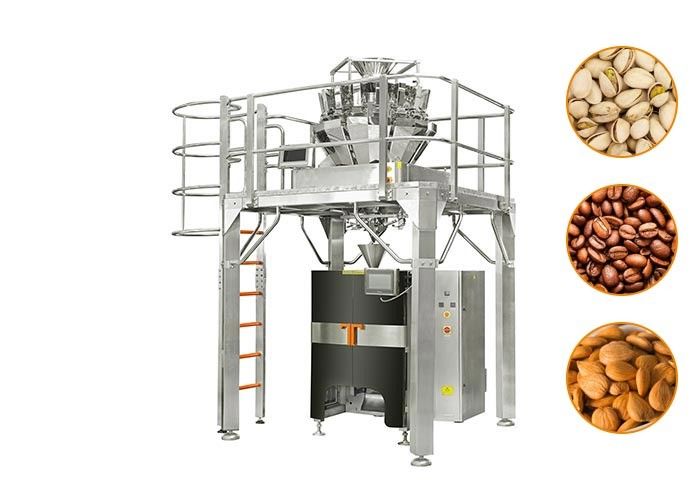

Automatic Vertical Form Fill Seal(Vffs) Machine For Packaging Dried Fruit

Product Description

Application

It is suitable to use in packing the high accuracy and easy fragile materals, such as: potato chips, crispy nice, snacks, candy,pistachio, sugar, apple slices, dumpling. chocolate, pet food, small wares, etcFeatures:

1. Double servo motors for film drawing down system.

2 Automatic film rectifying deviation function,

3. Famous brand PLC Pneumatic system for vertical and horizontal sealing

4. Compatible with different intemal and extemal measuring device5 Adopt clip supporting without broken bags and reduce waste

Model

320 VFFS

420VFFS

Packing Speed

10-80BPM

10-70BPM

Bag Size

50-200(L)*60-150(W)mm

60-300(L)*60-200(W))mm

Bag Type

pillow bag, gusset bag, hole punching bag, vacuum bag

Film Width

140-320mm

140-420mm

Film Thickness

0.04-0.09mm

0.04-0.09mm

Film Material

BOPP/CPP,BOPPVMCPP,BOPP/PE,PETVMPET/PE,PET/PE

Control Type

single servo /dual servo

single servo /dual servo

Air Consumption

0.8Mps 0.25 m³/min

0.8Mps 0.5 m³/min

Power Supply

single phase 220V 50Hz/60Hz,2.2kW

single phase 220V 50Hz/60Hz,2.2kW

Machine Dimension

1,115(L)*800(W)*1,370(H) mm

1,530(L)*970(W)*1,600(H) mm

Machine Weight

300kg

450kg

Model

520 VFFS

620 VFFS

720 VFFS

Packing Speed

10-60 BPM

10-50 BPM

10-45 BPM

Bag Size

50-350(L)*50-250(W) mm

20-400(L)*100-300(W)mm

20-450(L)*140-350(W) mm

Bag Type

pillow bag, gusset bag, hole punching bag

pillow bag,gusset bag,hole punching bag

pillow bag, gusset bag, hole punching bag

Film Width

120-520mm

620mm

720mm

Film Thickness

0.04-0.09mm

0.04-0.09mm

0.06-0.12mm

Film Material

BOPP/CPP,BOPPVMCPP,BOPP/IPE,PETVMPETIPE,PET/IPE

Pulling Belt Type

synchronous belt film puling

synchronous servo motor belt film puling

synchronous servo motor belt film puling

Air Consumption

0.8Mps 0.4 m³/min

0.8Mps 0.6 m³/min

200L/min 0.7×105Pa

Power Supply

single phase 220V 50Hz/60Hz,3.4kW

single phase 220V 50Hz/60Hz,4.0kW

single phase 220V 50Hz/60Hz,4.5kW

Machine Dimension

1,560(L)*1,160(W)*1,530(H) mm

1,250(L)*1,600(W)1,700(H) mm

1,360(L)*1630(W)*1,900(H) mm

Machine Weight

480kg

800kg

900kg

2002 to 2009,Founder of the company started his business by providing processing support, designing and manufacturing automation production lines to ABB, Siemens and ThyssenKrupp which are among Fortune 500 companies.

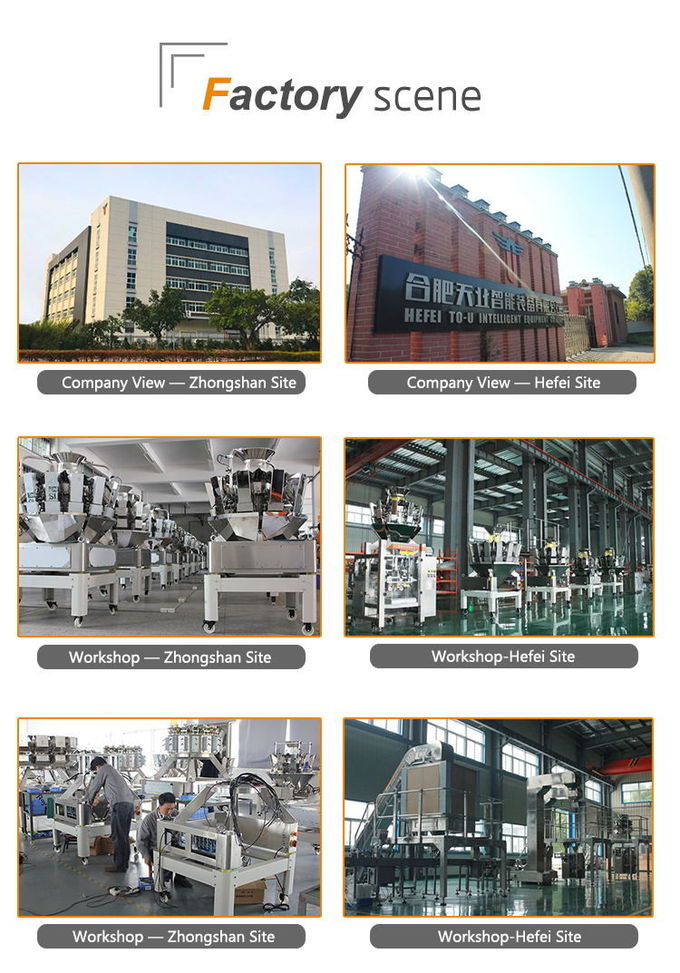

Since 2009, TOUPACK has been focusing on R&D, fabrication, marketing and sales of intelligent weighing and packaging machines as well as various kinds of automated control equipment. Being a high-tech and innovative company, TO-U has worked as a business partner with Guangdong Meiweixian (Zhongshan),Anhui Qiaqia (Hefei) and many other well-known packaging machinery and food companies by supplying them with automated and intelligent weighing and packaging solutions. To better serve our customers, TO-U has set up its after-sales service center in California, USA, wholly-owned substitute Hefei TO-U Intelligent Equipment Co., Ltd. in East China and offices in Sichuan and Shanghai.
